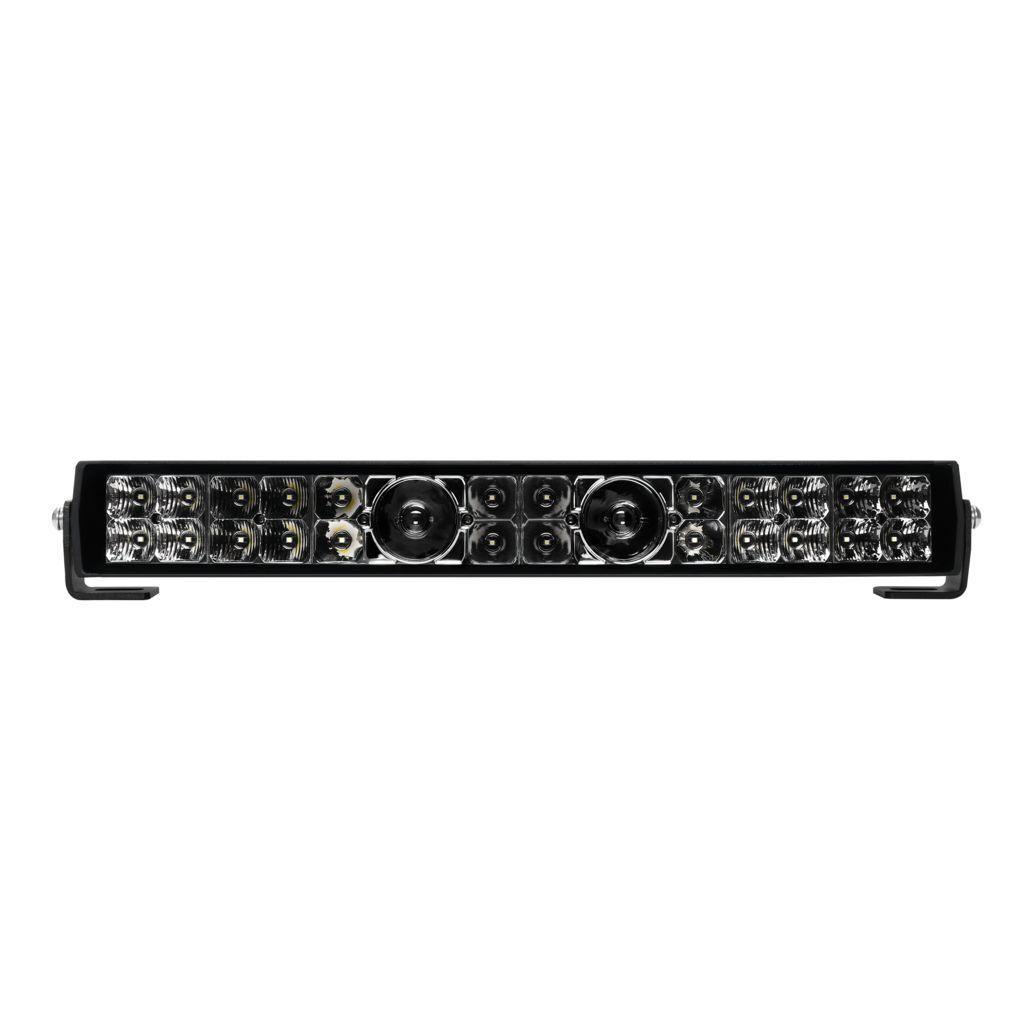

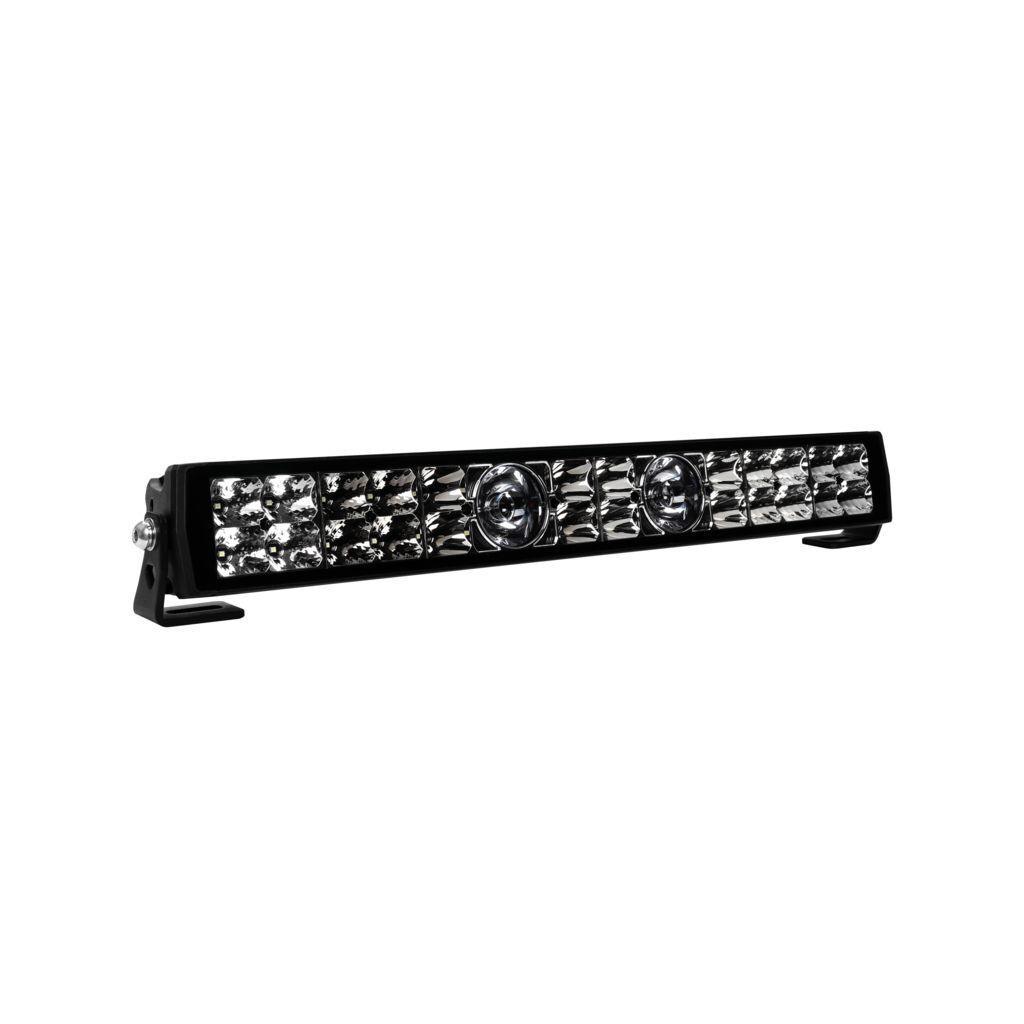

20” Laser Led Lightbar Combo Beam 507MM

Features

• Ignite 20" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 136 Watt
• Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
• and Pressure Equalising Vent

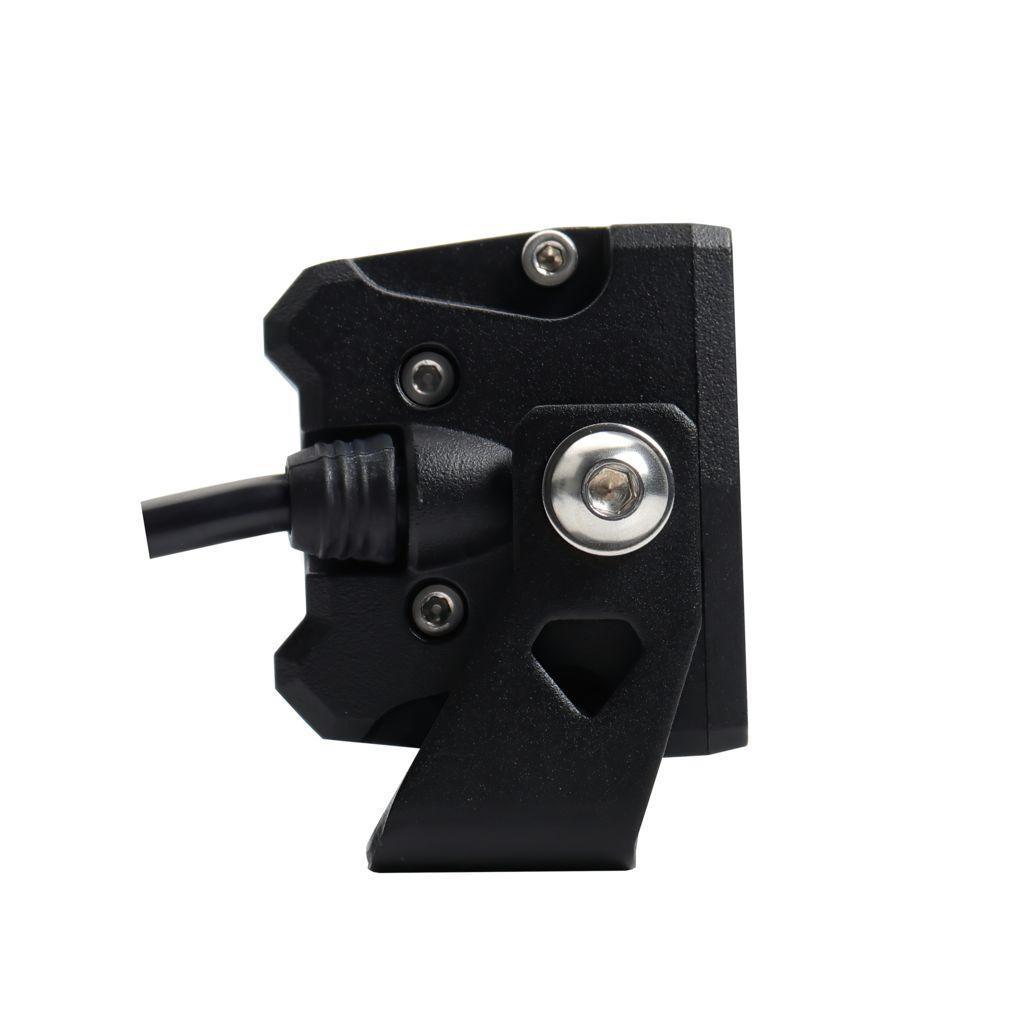

• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• Combined Laser and LED Illumination Technology
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant to 15G
• Anti Rust, corrosion and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R112, R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• 5 Year Warranty

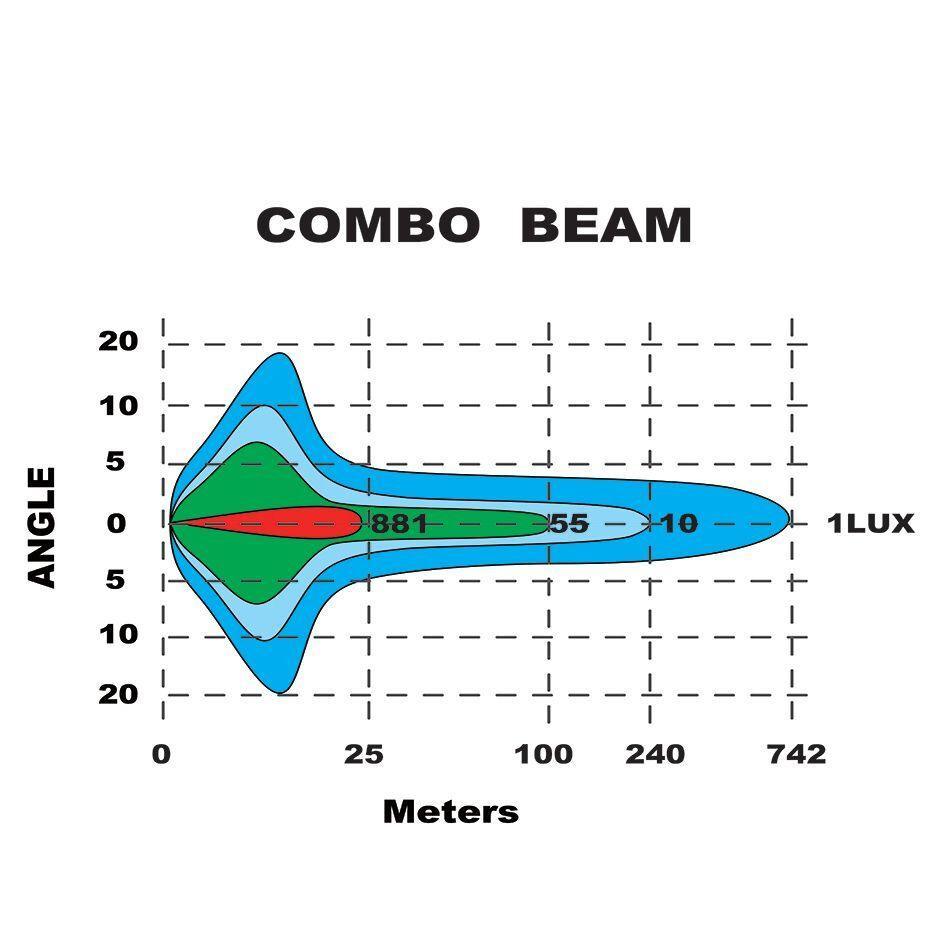

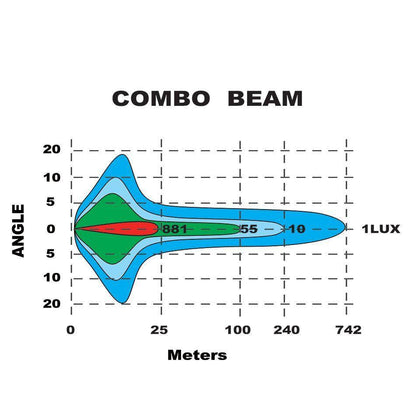

• 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
• 24 x 4 Watt High Intensity LP LED's and 2 x 20 Watt High Intensity Osram Laser LED's
• 11,500 Raw and 9,800 Effective Lumens and 6,000K
• 1 Lux @ 742m and 551,000 cd Peak Beam Intensity
• Current Draw: 9.8amp @ 12 Volt and 4.8amp @ 24 Volt

Specifications
