Ultra Vision Lighting

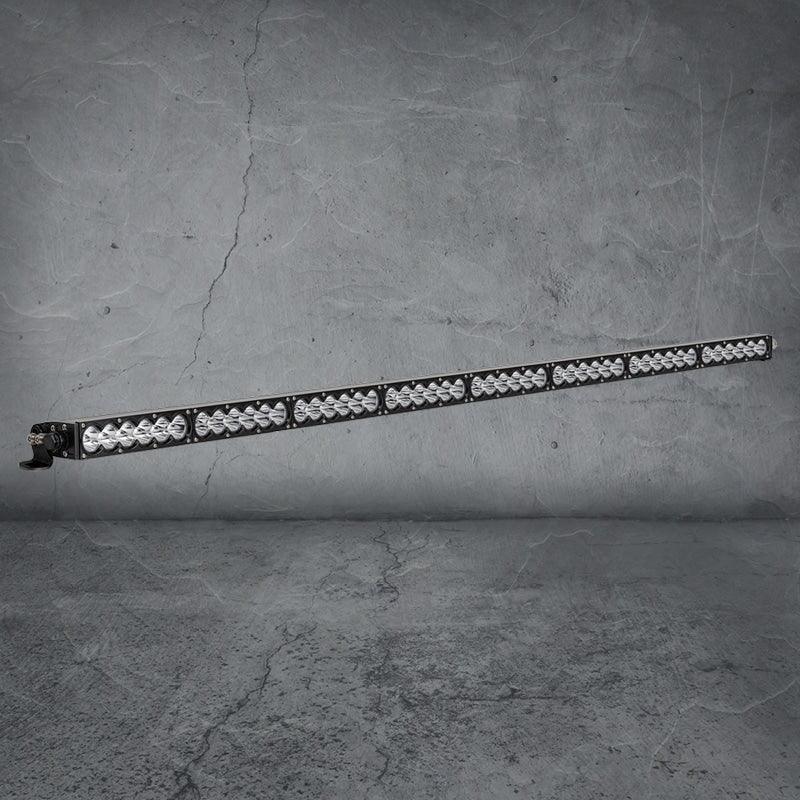

240 LED 51″ Light Bar

240 LED 51″ Light Bar

Regular price $899.00
Regular price Sale price $899.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $224.75 AUD fortnightly with More info

Beam Type
Colour Temperature
  • Made in Australia – Designed and built for the toughest environments on earth
  • Available with either 4000k or 5700k Colour Temperature
  • 3 Year Warranty
  • Suits DV12HD Harness – Sold Seperately

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of over 100° from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

The RAPTOR 240 light bar comes complete with stainless steel pivot mounting brackets, stainless steel fixings and a 3-metre lead for mounting onto roof rack systems.  As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

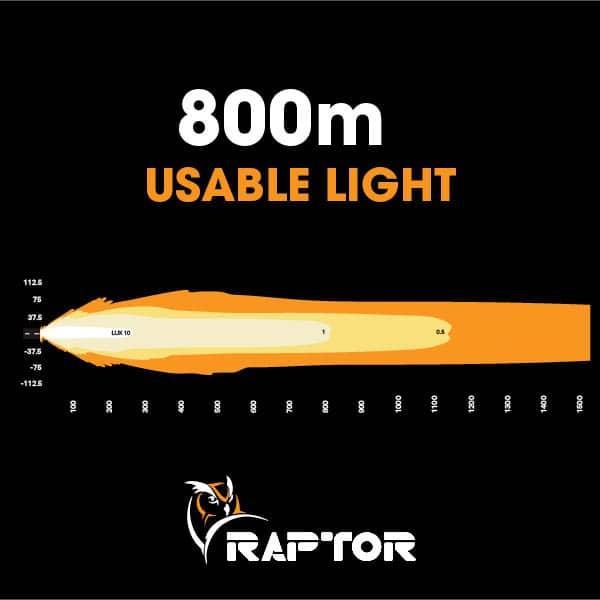

Beam Pattern

240W RAPTOR LIGHT BAR SPECIFICATIONS
Wattage 240 Watts
Light Source 48 x 5w LED's
Light Output – Raw 28,850 Lumens
Light Output – Effective 23,070 Lumens
Voltage 9-36V
Current Draw 19A
Operating Temperature 40degC to +80degC
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Brackets Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

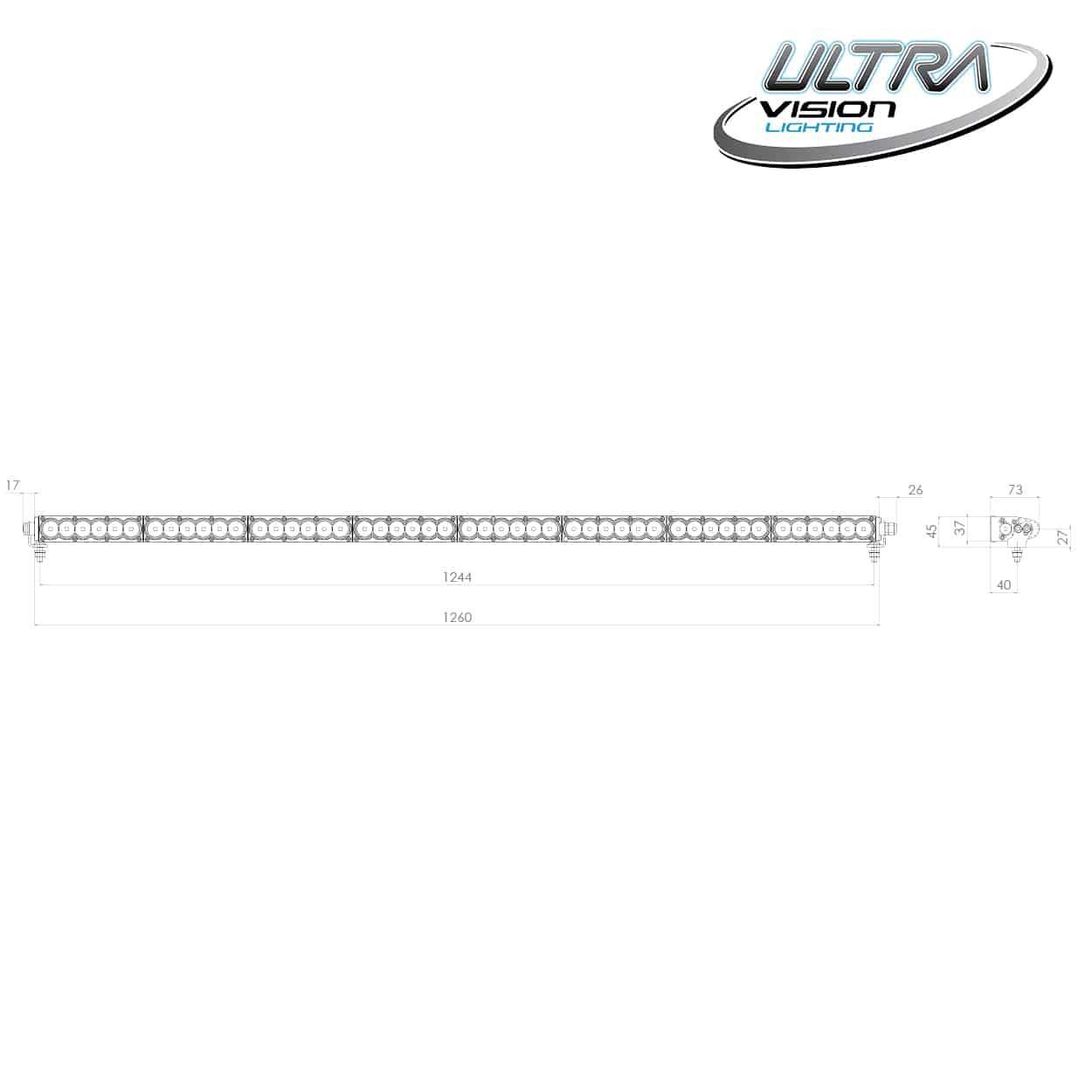

Dimensions 1303 x 45 x 73mm
Net Weight 3.7kg
Mounting Suitable Base Mounts
Beam Types Combo or Spread
Warranty 3 Years
Harness Included Harness not included, purchased separately. Harness to suit: DV12H
