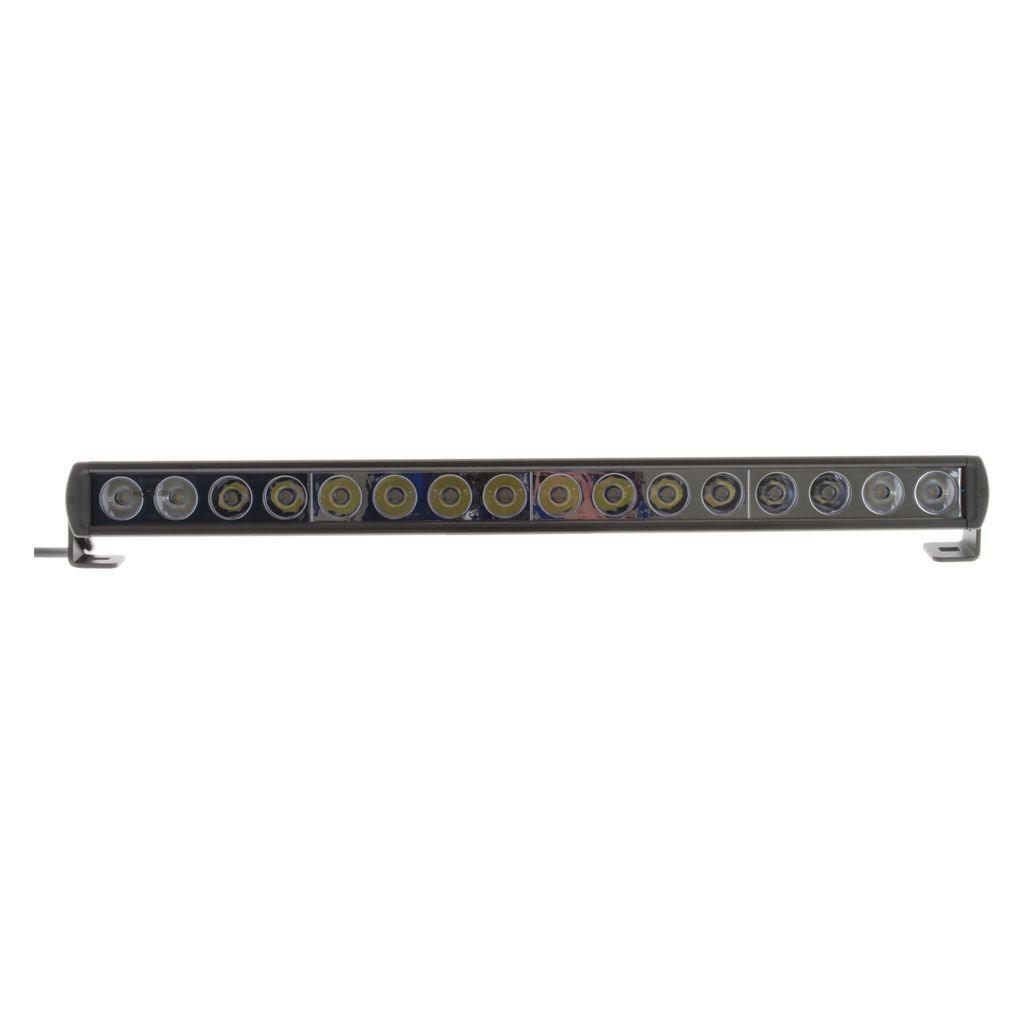

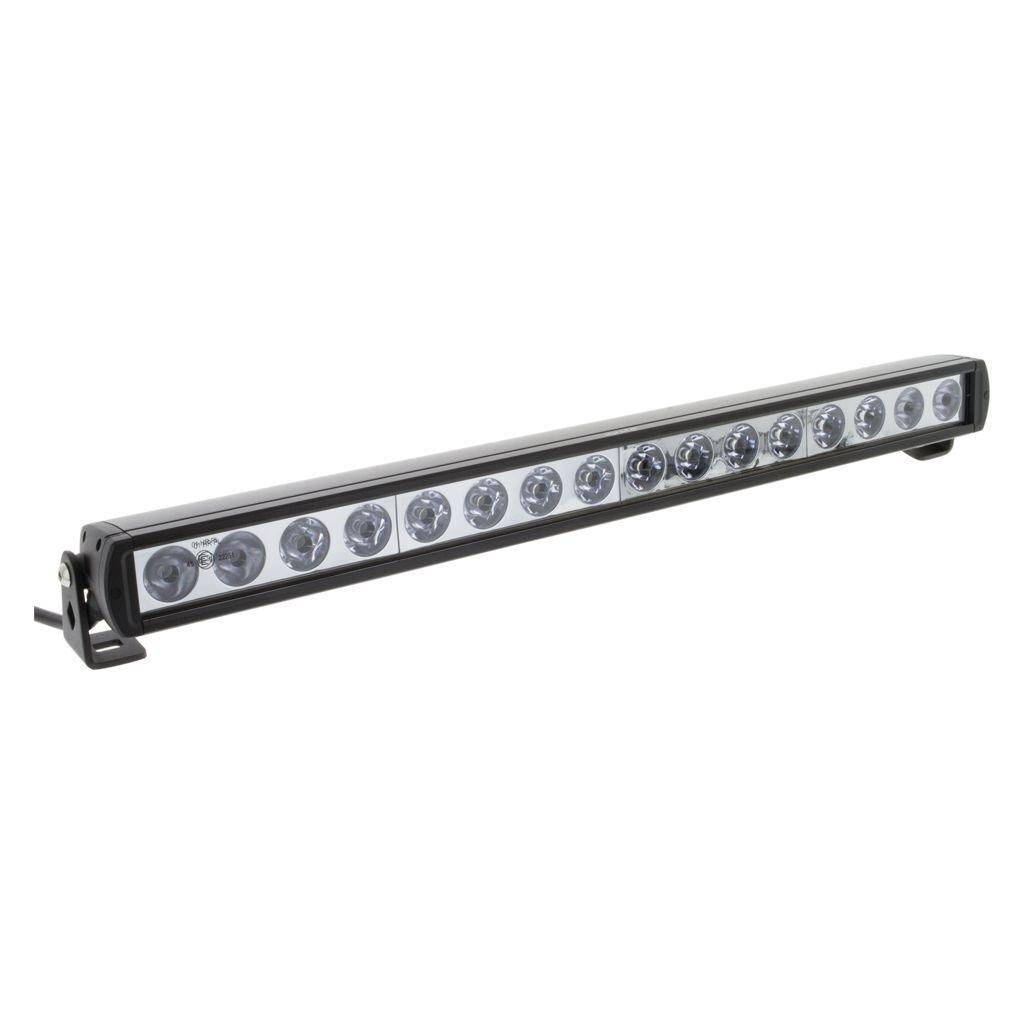

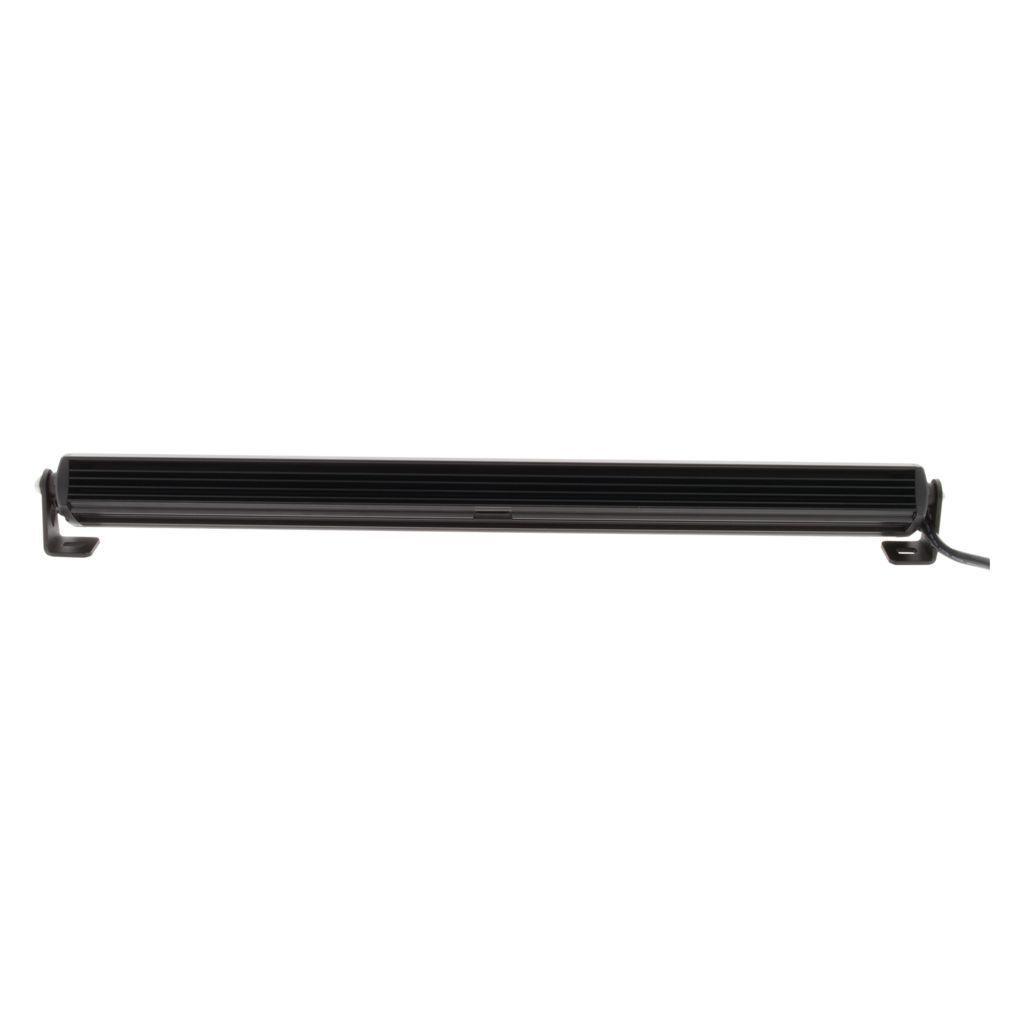

26” Led Lightbar Chrome Fascia Combo Beam 670MM

26” Led Lightbar Chrome Fascia Combo Beam 670MM

$470.00 AUD
$470.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent

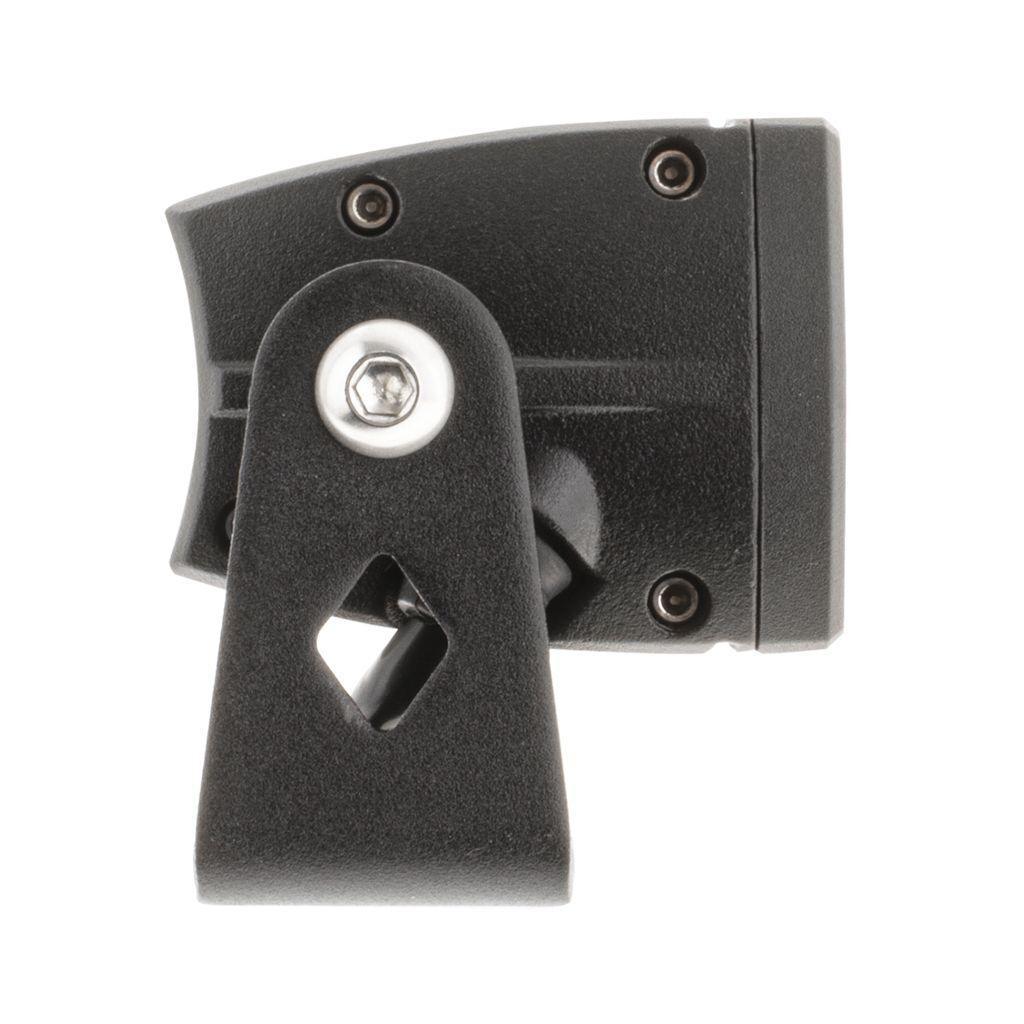

  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Chrome Fascia
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty

Spare Parts

  • Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
16 x 10 Watt High Intensity Osram LED's
16,560 Raw Lumens and 6,000K
1 Lux @ 531m and 281,961cd Peak Beam Intensity
Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt

          Specifications

          Beam Type Combined
          Depth (mm) 70
          Height (mm) 56
          Rows Single
          Mount Other
          No. of LED Other
          Series Other
          Type LED
          Voltage Multivolt
          Watts Other
          Width (mm) 670
