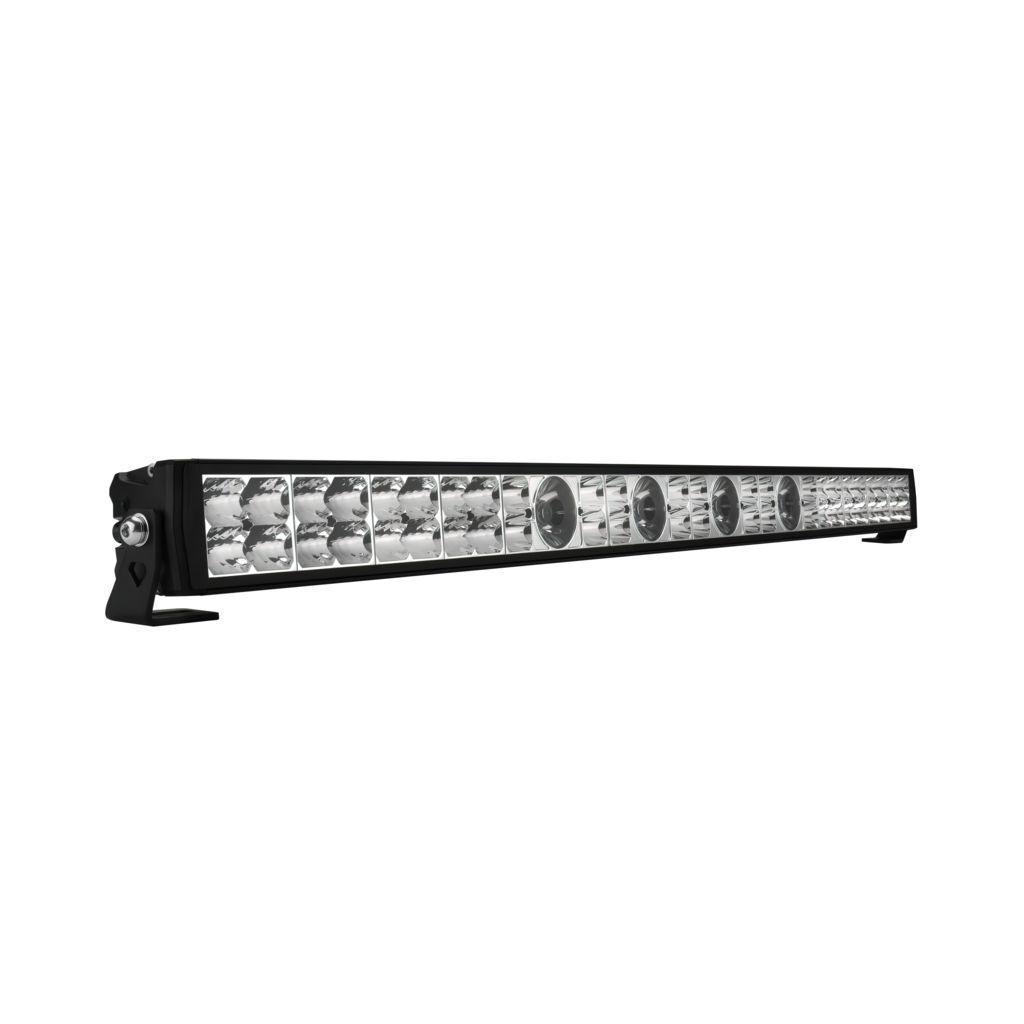

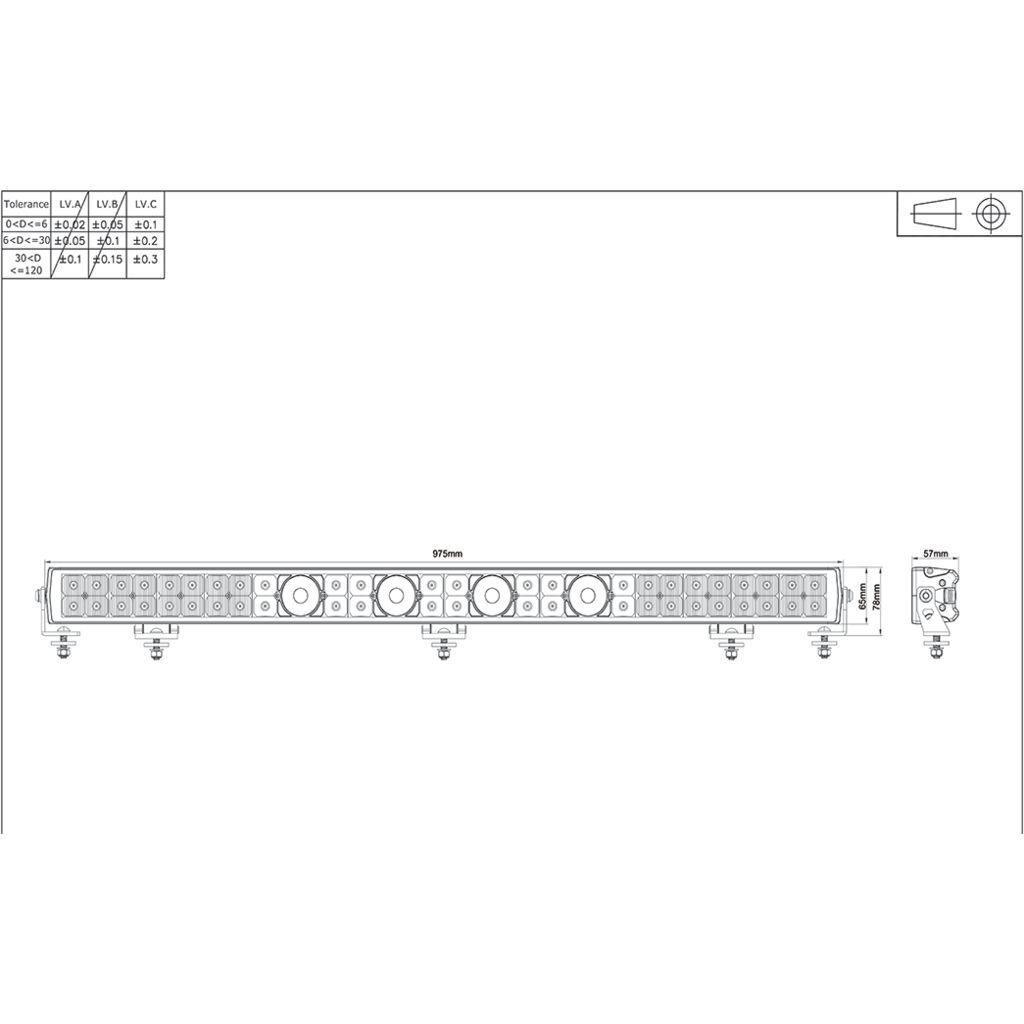

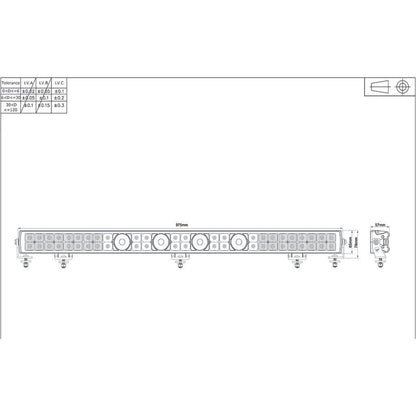

38” Laser Led Lightbar Combo Beam 975MM

• Ignite 40" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 272 Watt
• Polycarbonate Side Reflector Focusing Optic Drive Technology and Laser LED Drive Technology
• with Lexan Polycarbonate Lens
• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
• and Pressure Equalising Vent

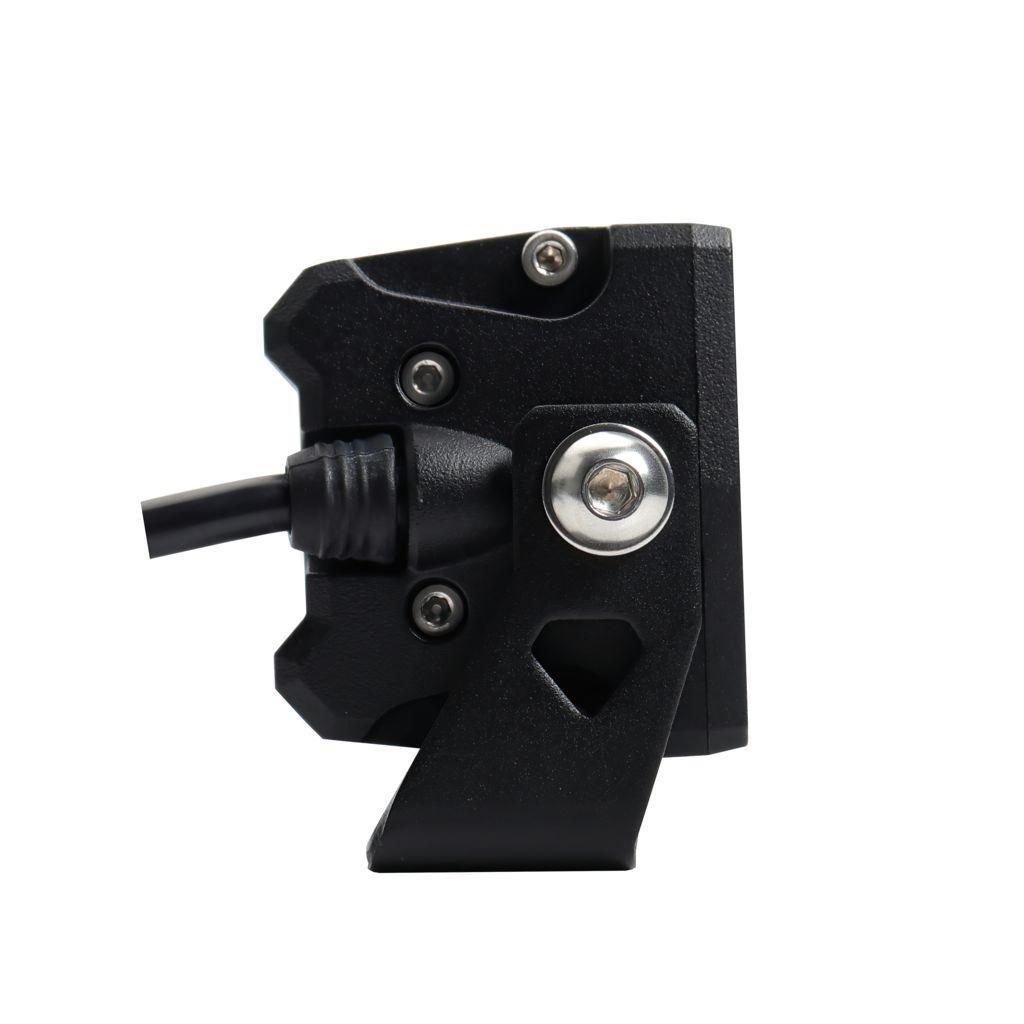

• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Combined Laser and LED Illumination Technology
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant to 15G
• Anti Rust, corrosion and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C

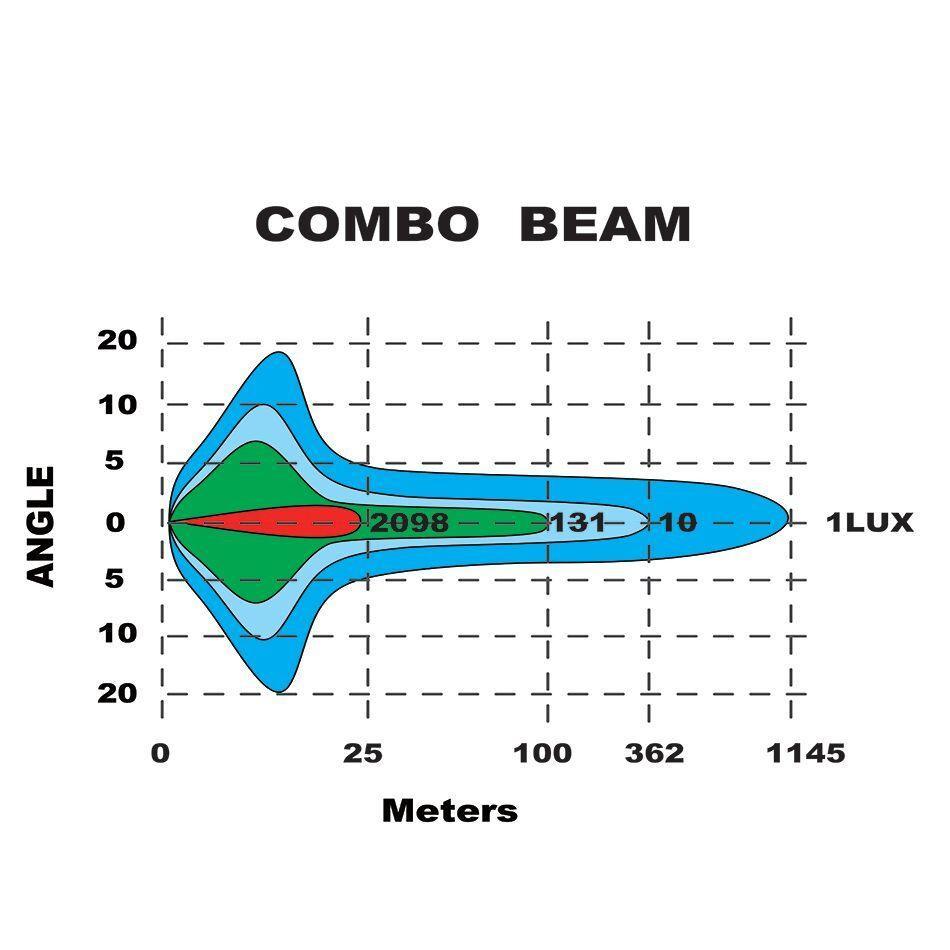

• 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
• 5 Year Warranty
• 48 x 4 Watt High Intensity LP LED's and 4 x 20 Watt High Intensity Osram Laser LED's
• 20,000 Raw and 17,000 Effective Lumens and 6,000K
• 1 Lux @ 1,145m and 1,312,000cd Peak Beam Intensity
• Current Draw: 15.2amp @ 12 Volt and 7.5amp @ 24 Volt

Specifications
