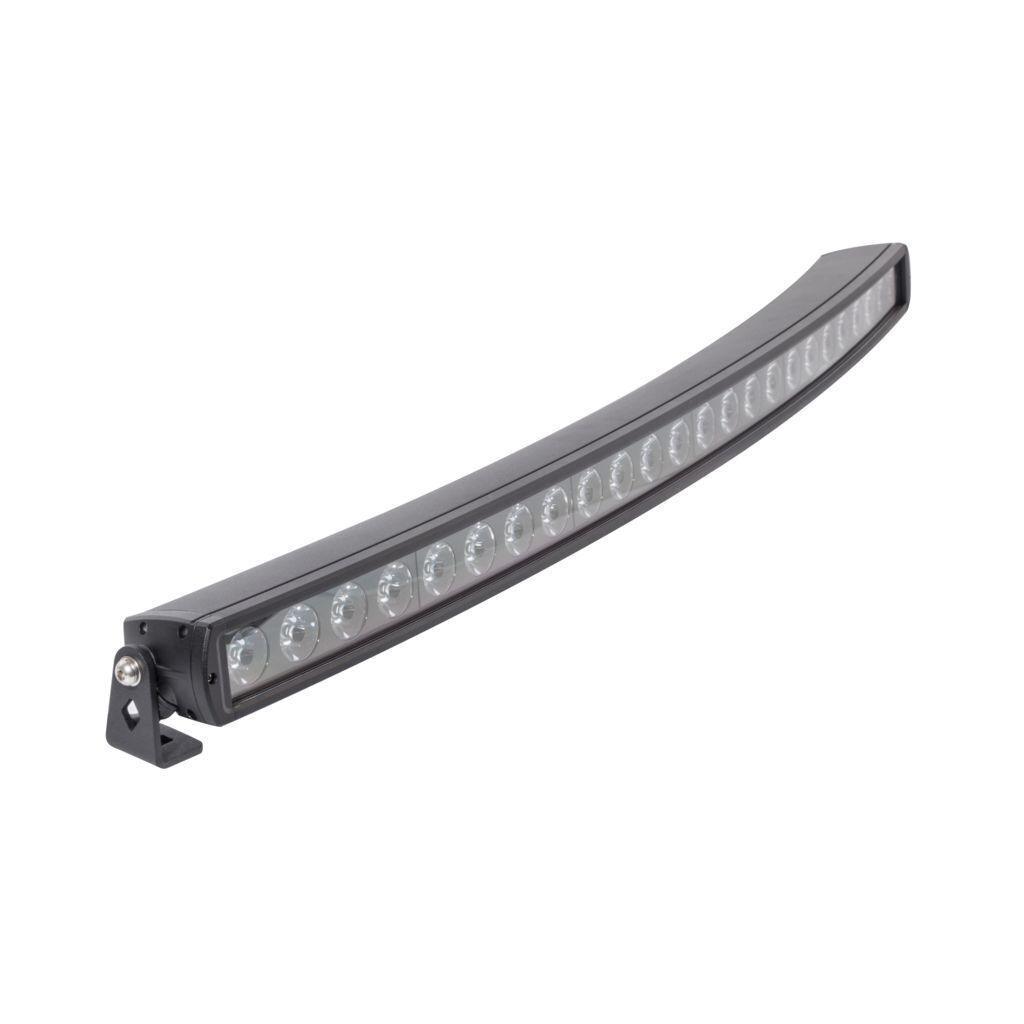

51” Led Curved Lightbar Combo Beam 1300MM

51” Led Curved Lightbar Combo Beam 1300MM

$699.00 AUD
$699.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • Ignite SX Series Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 320 Watt
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty

Spare Parts

  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • 32 x 10 Watt High Intensity Osram LED's
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket

33,120 Raw Lumens and 6,000K
1 Lux @ 519m and 269,361cd Peak Beam Intensity
Current Draw: 22amp @ 12 Volt and 10.6amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

        Specifications

        Beam Type Combined
        Depth (mm) 70
        Height (mm) 56
        Rows Single
        Mount Other
        No. of LED Other
        Series Other
        Type LED
        Voltage Multivolt
        Watts Other
        Width (mm) 1300
