BM Pro

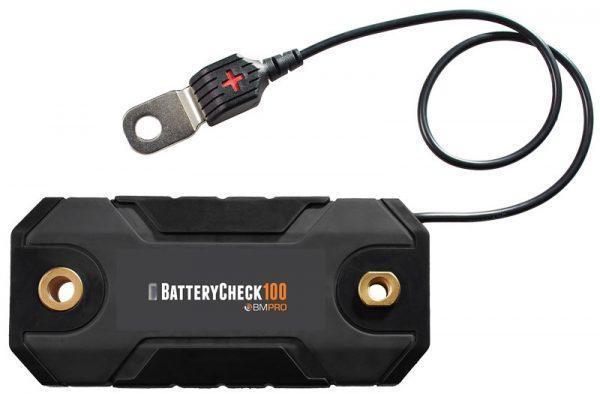

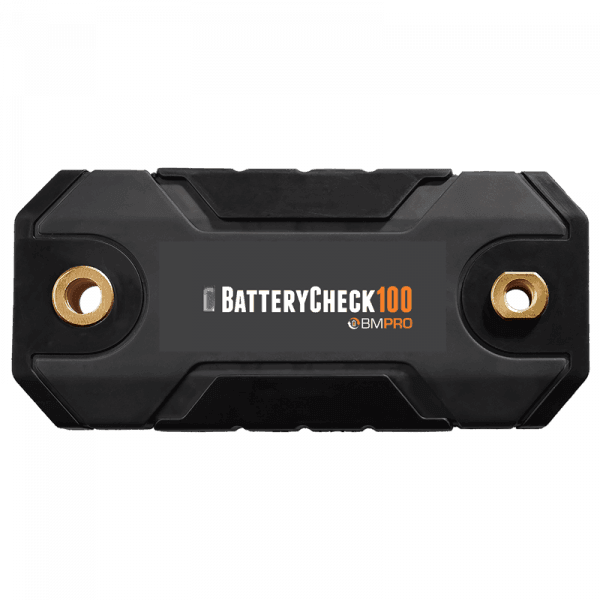

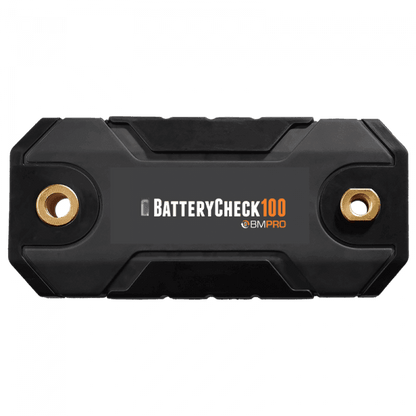

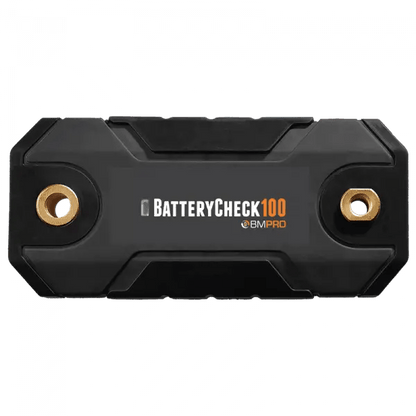

BATTERYCHECK100 Bluetooth Battery Monitor

BATTERYCHECK100 Bluetooth Battery Monitor

Regular price $265.00
Regular price Sale price $265.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $66.25 AUD fortnightly with More info

With BatteryCheck100, you can really understand your recreational vehicle’s secondary battery when travelling. We all know that a simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be 100% sure your battery is in good health and has enough power for your next adventure.

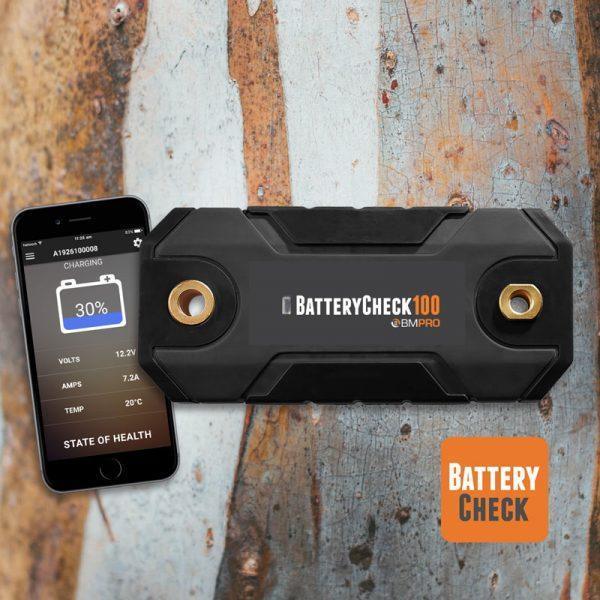

BMPRO’s BatteryCheck100 is a 12V battery monitor with the latest Bluetooth LE technology built in, so you can monitor your battery via smartphone with the app. The new and improved app is highly intuitive, clear and easy to use. Download BatteryCheck100+PRO app from Google Play store or App Store and set the monitoring in minutes.

BatteryCheck100 is compatible with  a range of standard 12V deep cycle batteries. It provides real time battery management data that allows users to effectively monitor remaining battery energy via a simple to use app.

Specially designed for recreational vehicles’ deep cycle batteries, BatteryCheck100 allows monitoring up to 100A maximum charge or discharge. BatteryCheck100 is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use.

BATTERY PARAMETERS MONITORED ARE:

  • Voltage and Temperature
  • Charge/Discharge Current
  • State of Charge (SoC)
  • State of Health (SoH)
  • Estimated Discharge Time Remaining

With Bluetooth battery monitor BatteryCheck100, you’ll always have enough power to keep your adventures on track.

For high current requirements and to monitor LiFePO4 batteries, use BatteryCheckPRO.

Specifications

Features

Input Voltage Range 8V to 16V
Voltage Measurement Resolution <20mV
Continuous Current Rating 80A
Current Measurement Range 100A
Current Measurement Resolution <20mA
Overload Protection (100ms w/out damage) 300A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g
