Enerdrive Dometic

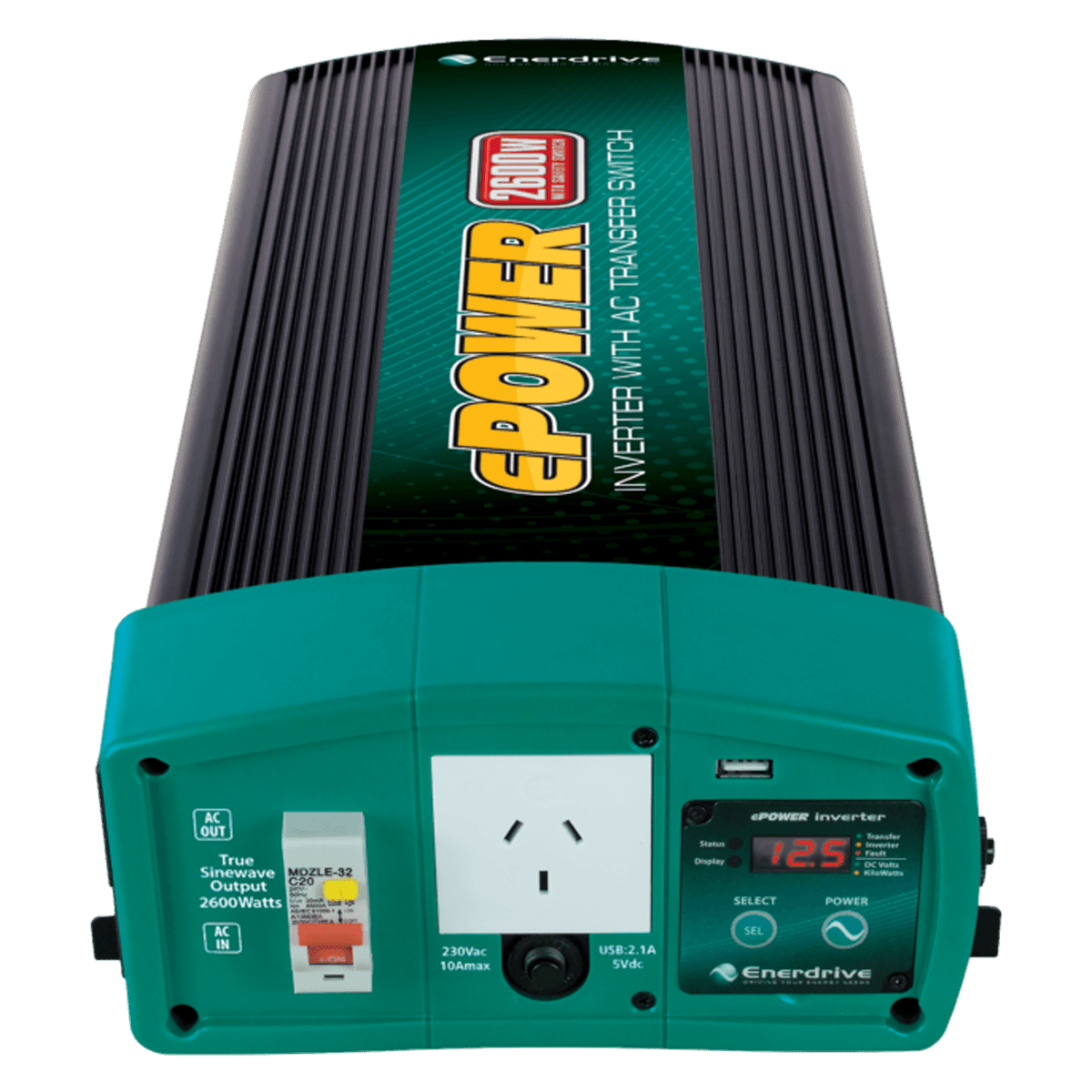

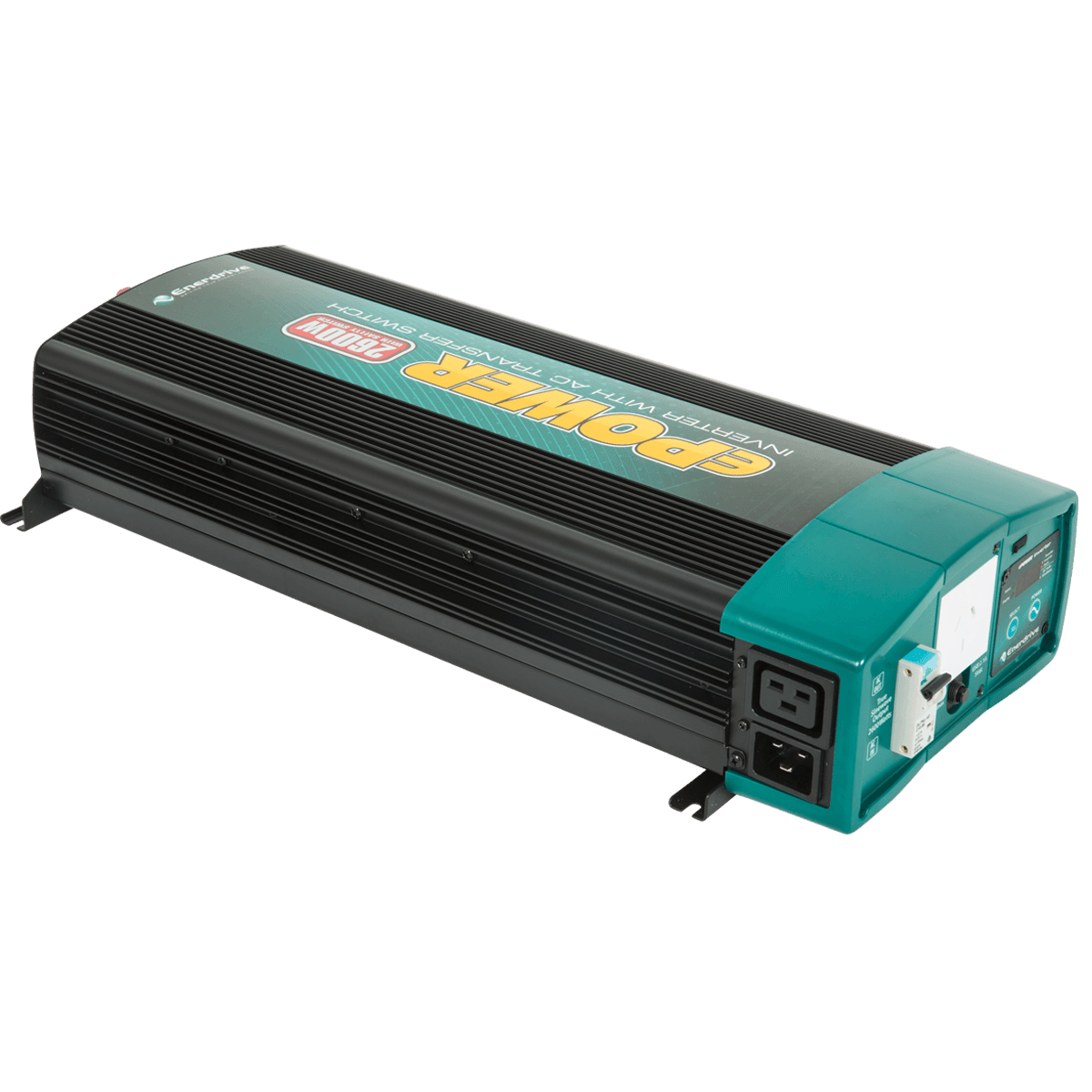

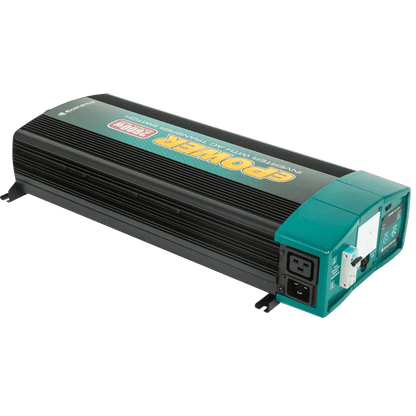

ePOWER 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch

ePOWER 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch

Regular price $1,899.00
Regular price $2,192.00 Sale price $1,899.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $474.75 AUD fortnightly with More info

Features

ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch & Safety Switch

The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

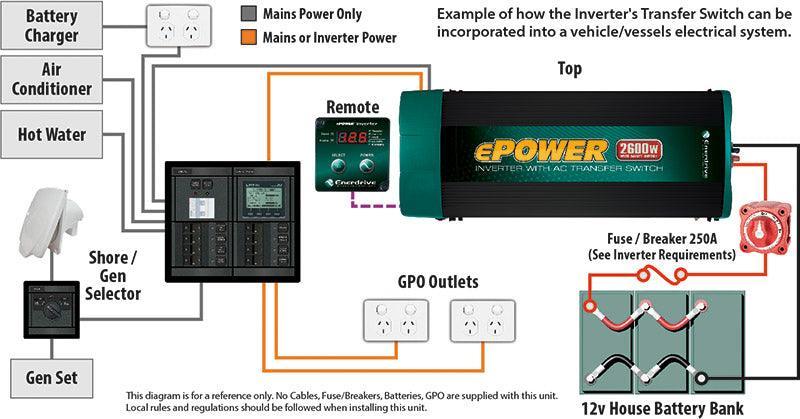

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5 Year warranty.

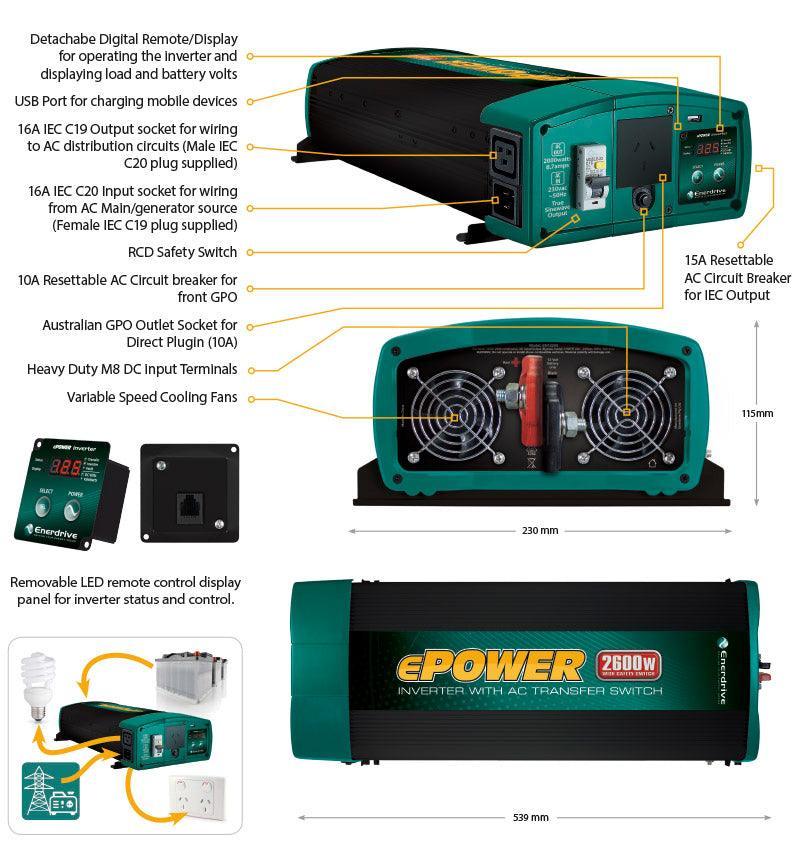

ePOWER Inverter Features:

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button

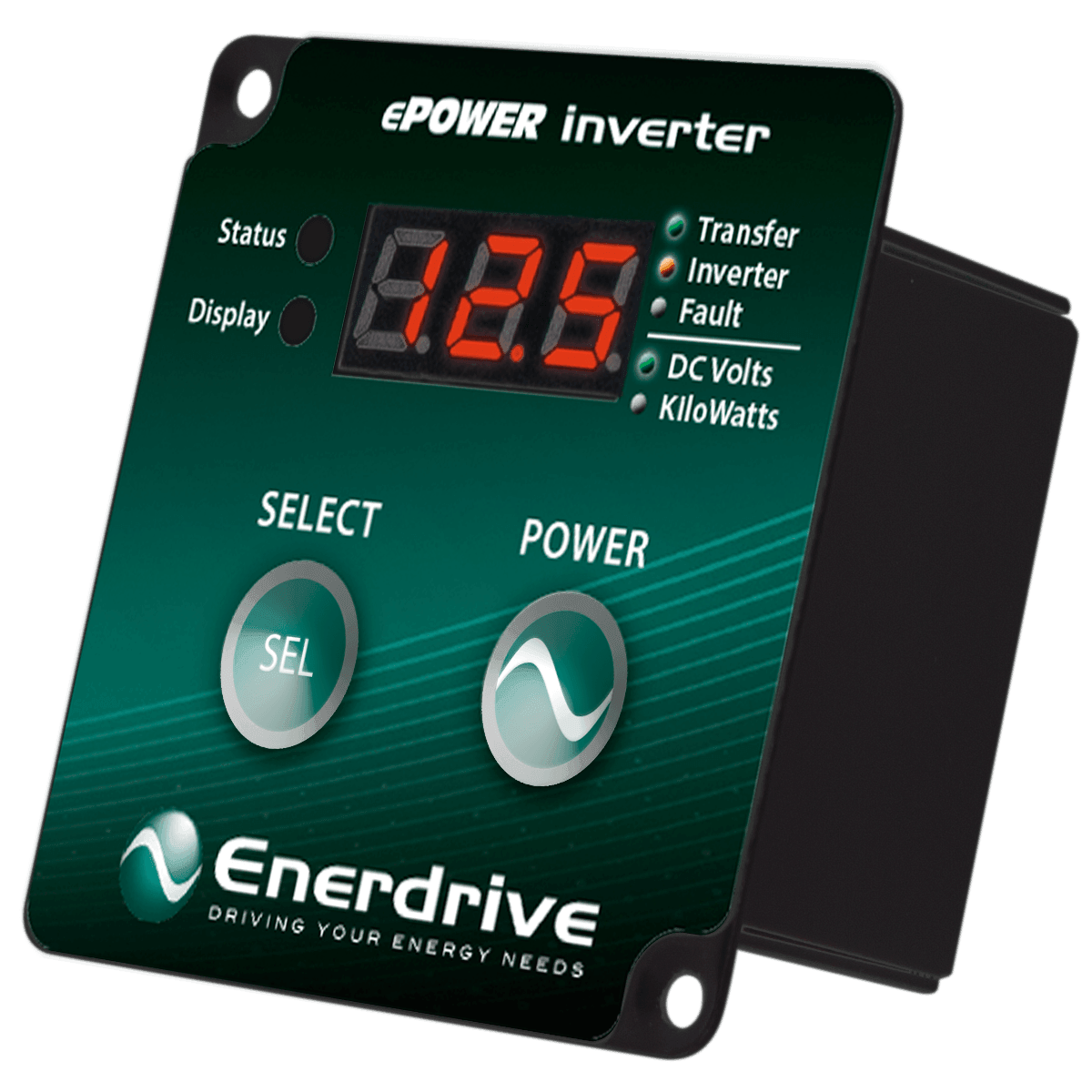

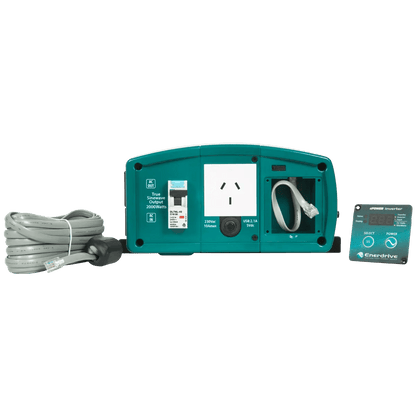

  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices

Specifications

True Sine Wave Inverter with AC Transfer & Safety Switch
SKU EN1120S-X EN1120S-X-24v EN1226S-X
AC Output Power 2000W 2000W 2600W
AC Output Current 8.7A 8.7A 11.3A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave (<3% THD)
Nominal DC Input Voltage 12.5 VDC 24.5 VDC 12.5 VDC
No Load battery draw < 1.5 ADC
DC Input Voltage operating range 10.5 – 15.5 VDC 21.0 – 31.0 VDC 10.5 – 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC 22.0 / 24.2 VDC 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC 22.6 / 24.6 VDC 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC 21.0 / 23.6 VDC 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC 24.0 / 25.2 VDC 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC 31.0 VDC 15.5 VDC
USB Port 5V, 2.1A
AC Transfer Switch
Transfer Time < 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5-90% non-condensing
Operating Altitude Up to 3000 meters above sea level
Weights and Dimensions
Weight 5.9 kg 5.9 kg 7.0 kg
Dimensions (W x L x H) 444x230x115 mm 444x230x115 mm 560x230x115 mm
Warranty 5 Years
