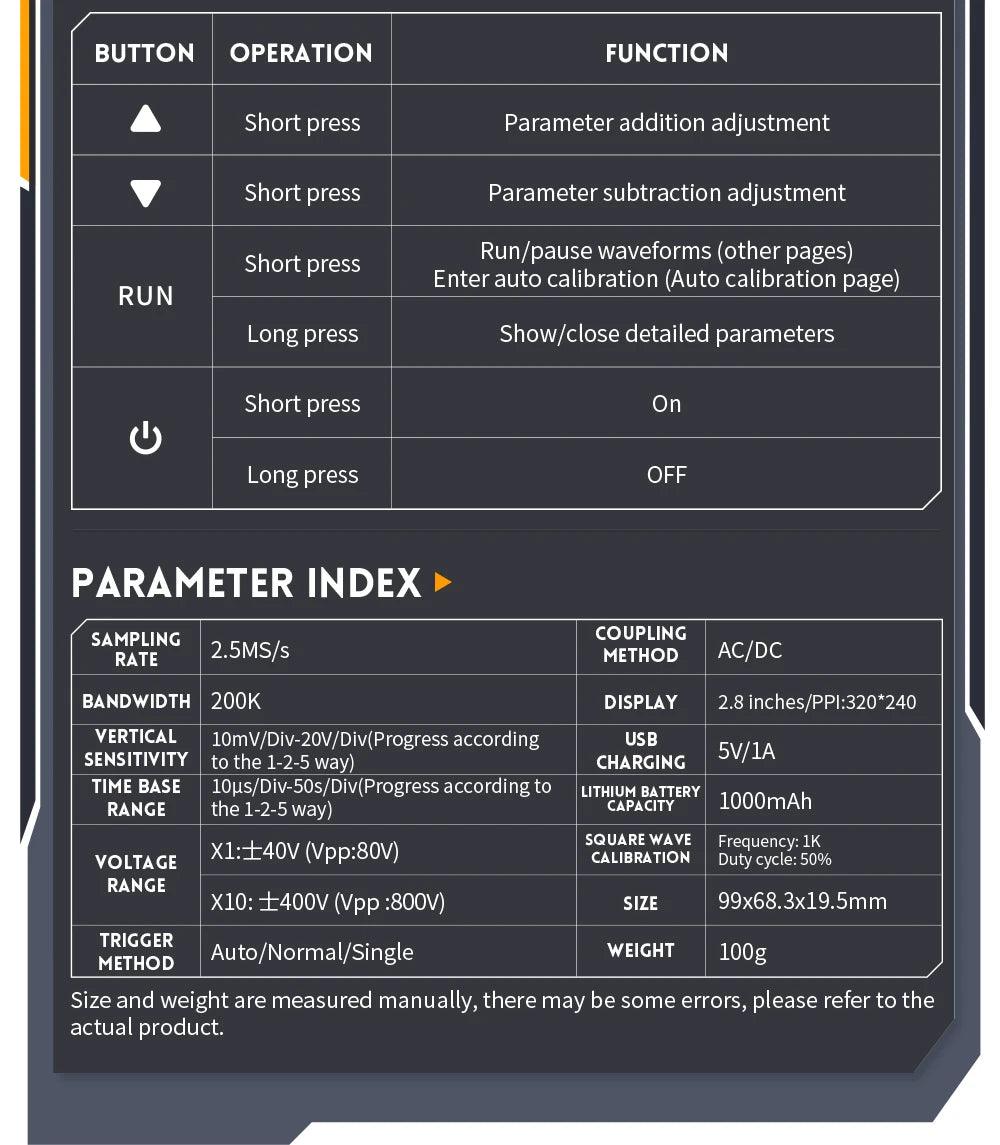

SPECIFICATIONS

Brand Name: FNIRSI

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

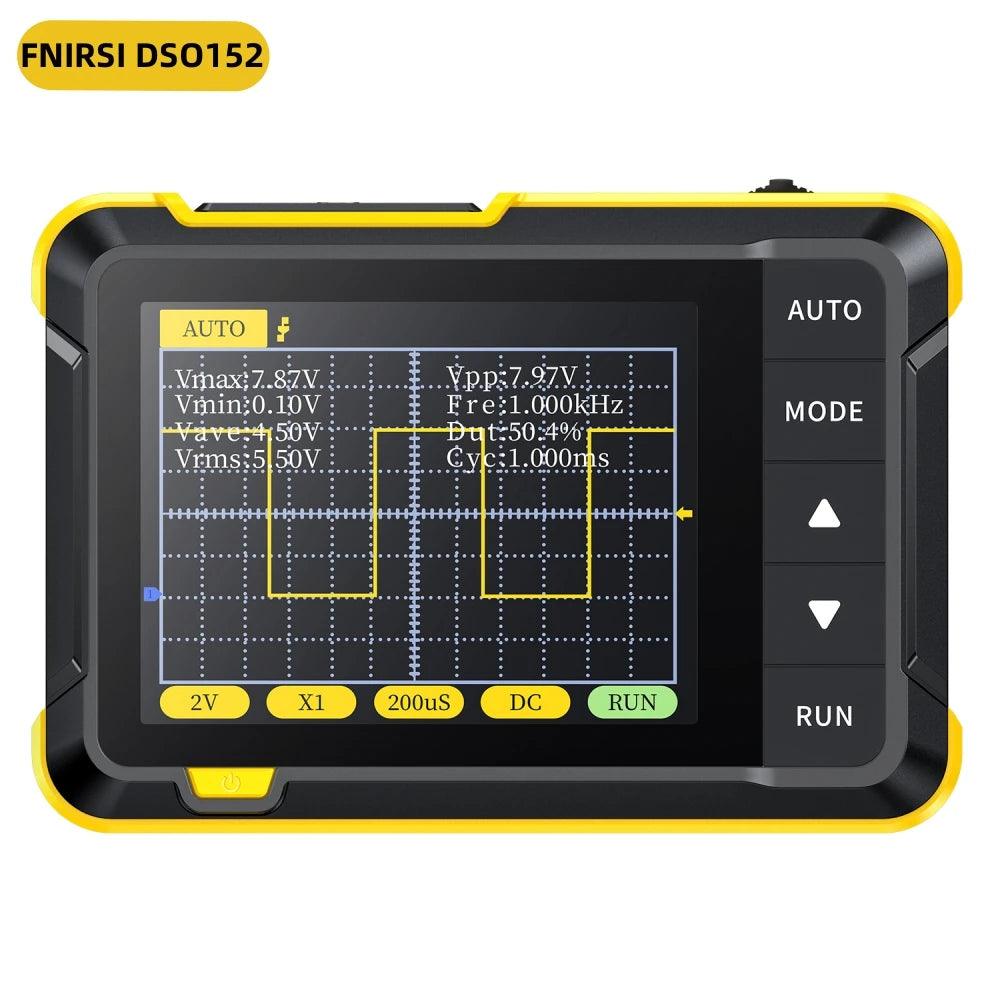

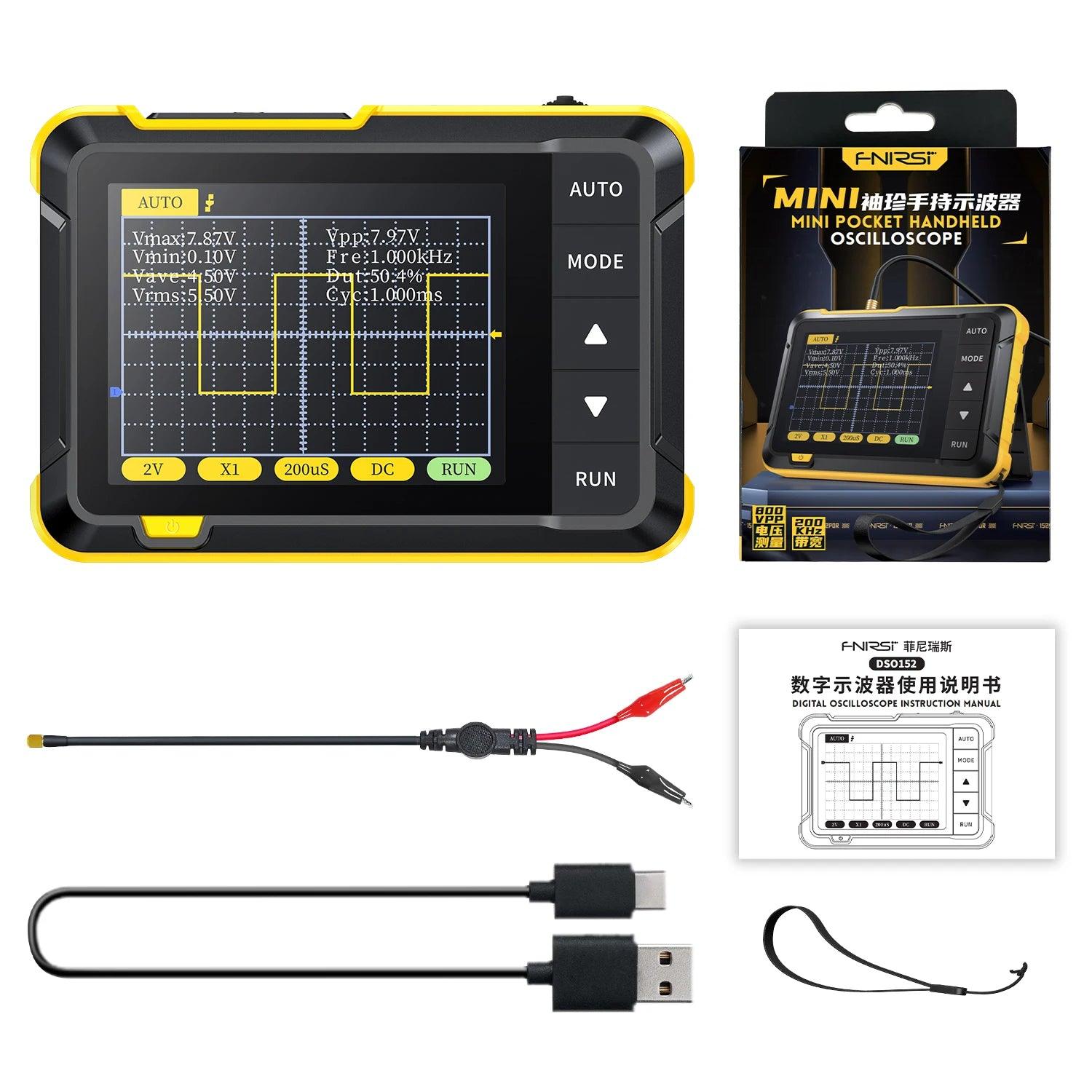

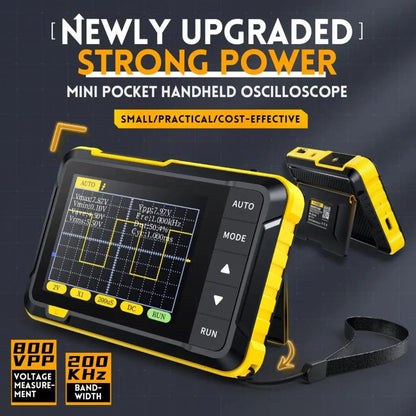

Model Number: FNIRSI DSO152

IS Battery Demountable: Yes

Display Size: None

Certification: CE

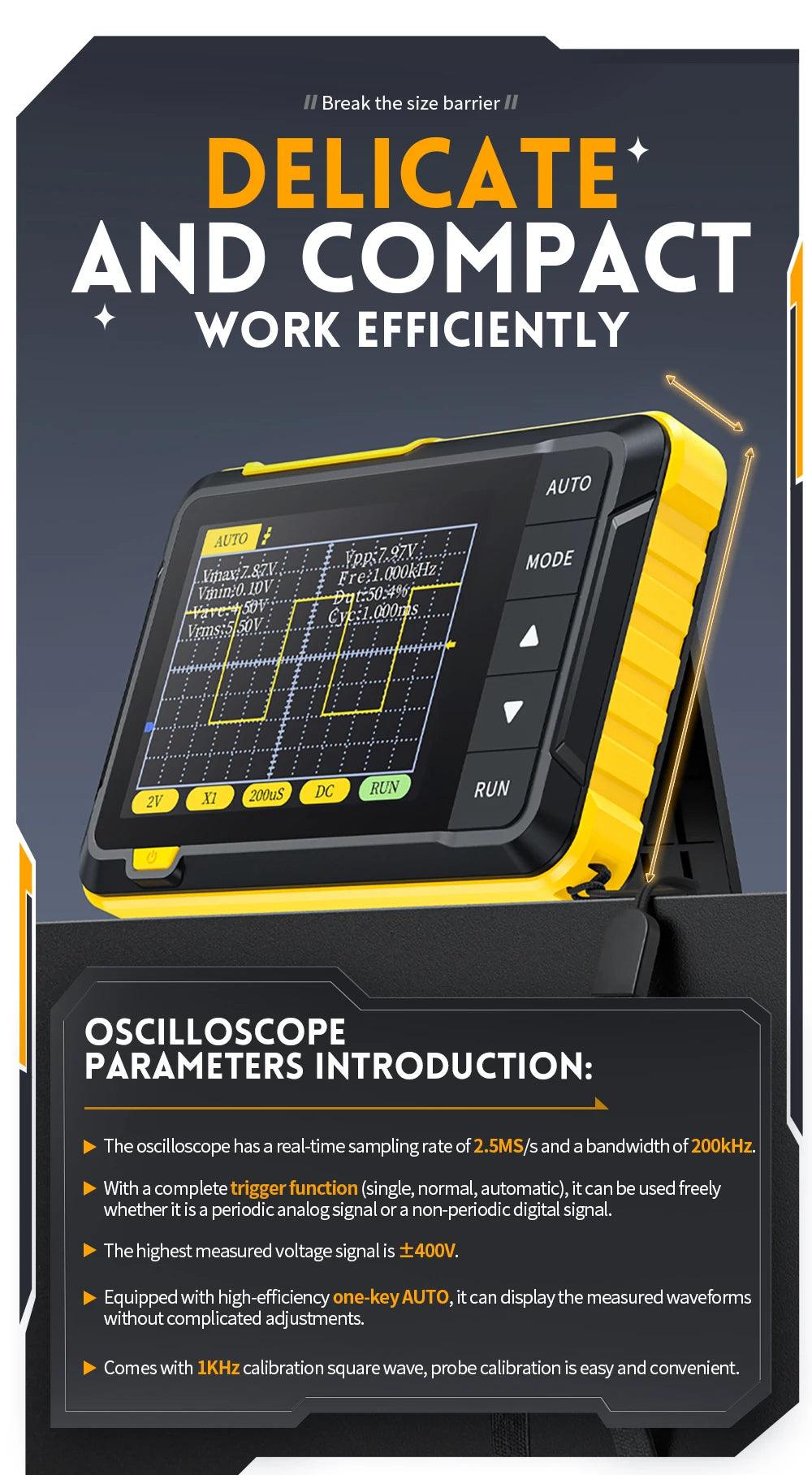

Real Time Sampling Rate: 2.5MSa/s

Max Waveform Capture Rate: 30,000wfm/s

Band Width: 200KHz

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range: 1X 400VPP 10X 800VPP

Trigger method: Auto/Normal/Single

Coupling method: AC/DC

Display: 2.8 inches/PPI:320*240

USB charging: 5V/1A

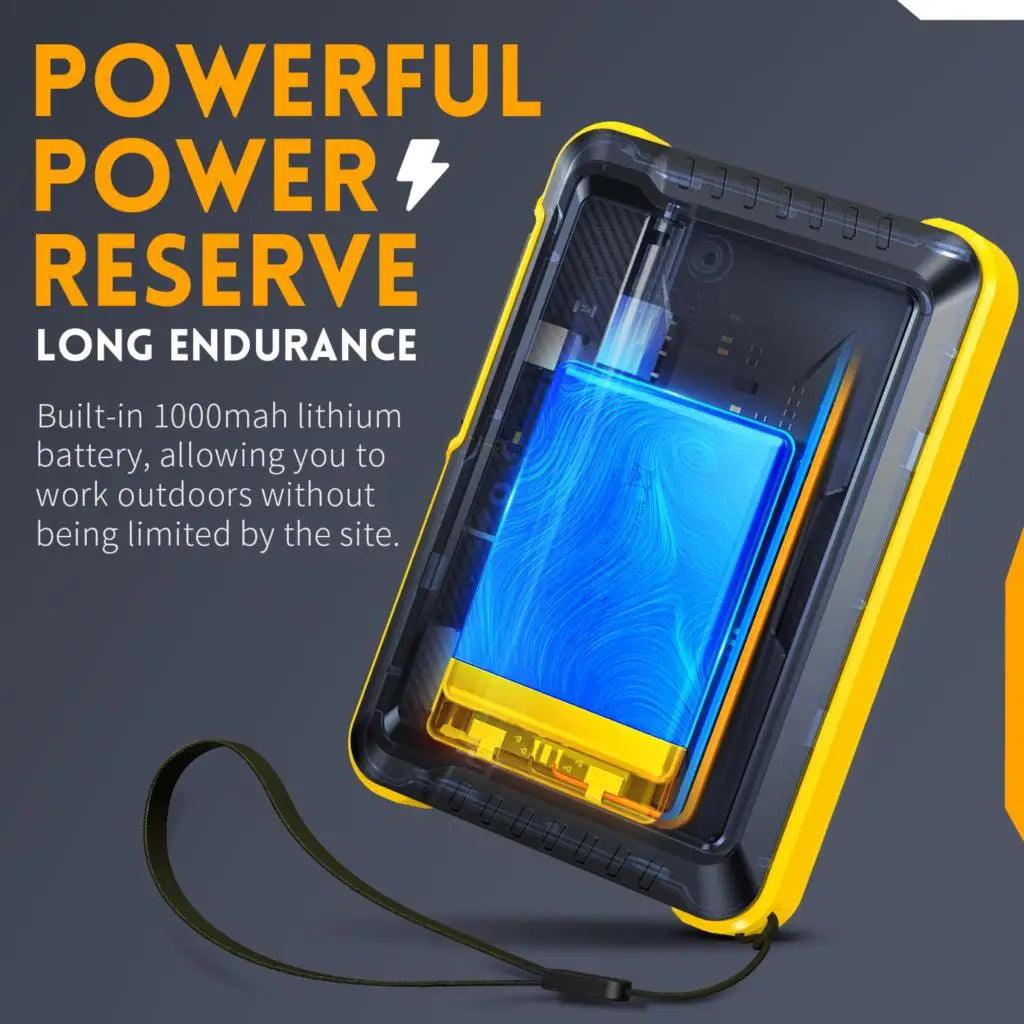

Lithium battery capacity: 1000mAh

Square wave calibration: Frequency: 1K Duty cycle: 50%
