30 LED 8.5″ Light Bar

30 LED 8.5″ Light Bar

Regular price $199.00
Regular price Sale price $199.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $49.75 AUD fortnightly with More info

Beam Type
  • Made in Australia – Designed and built for some of the toughest environments on earth.
  • Available with either 4000k or 5700k Colour Temperature
  • 3 Year Warranty
  • Suits DV12H Harness – Sold Separately

The LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body.  This, along with a high impact polycarbonate lens make the light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

All lamps come complete with stainless steel pivot mounting brackets and stainless steel fixings. As with all products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

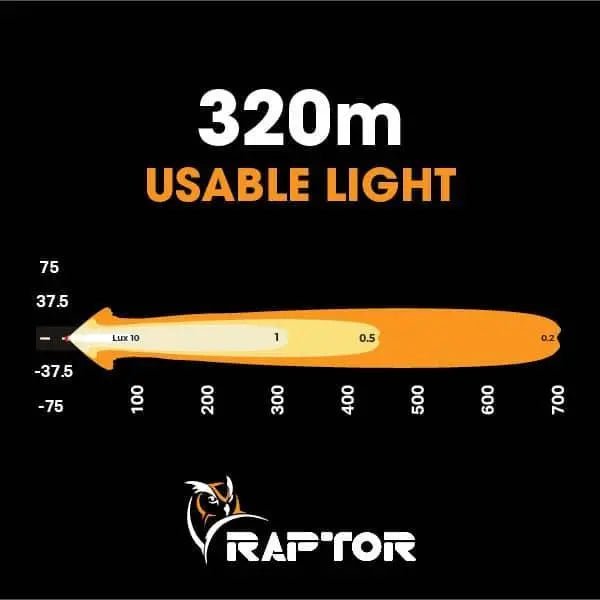

Beam Pattern


Wattage 30 Watts
Light Source 6 x 5w LEDs
Light Output – Raw 3,600 Lumens
Light Output – Effective 2,895 Lumens
Voltage 9-36V
Current Draw 2.2A @ 13.5
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Outer Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

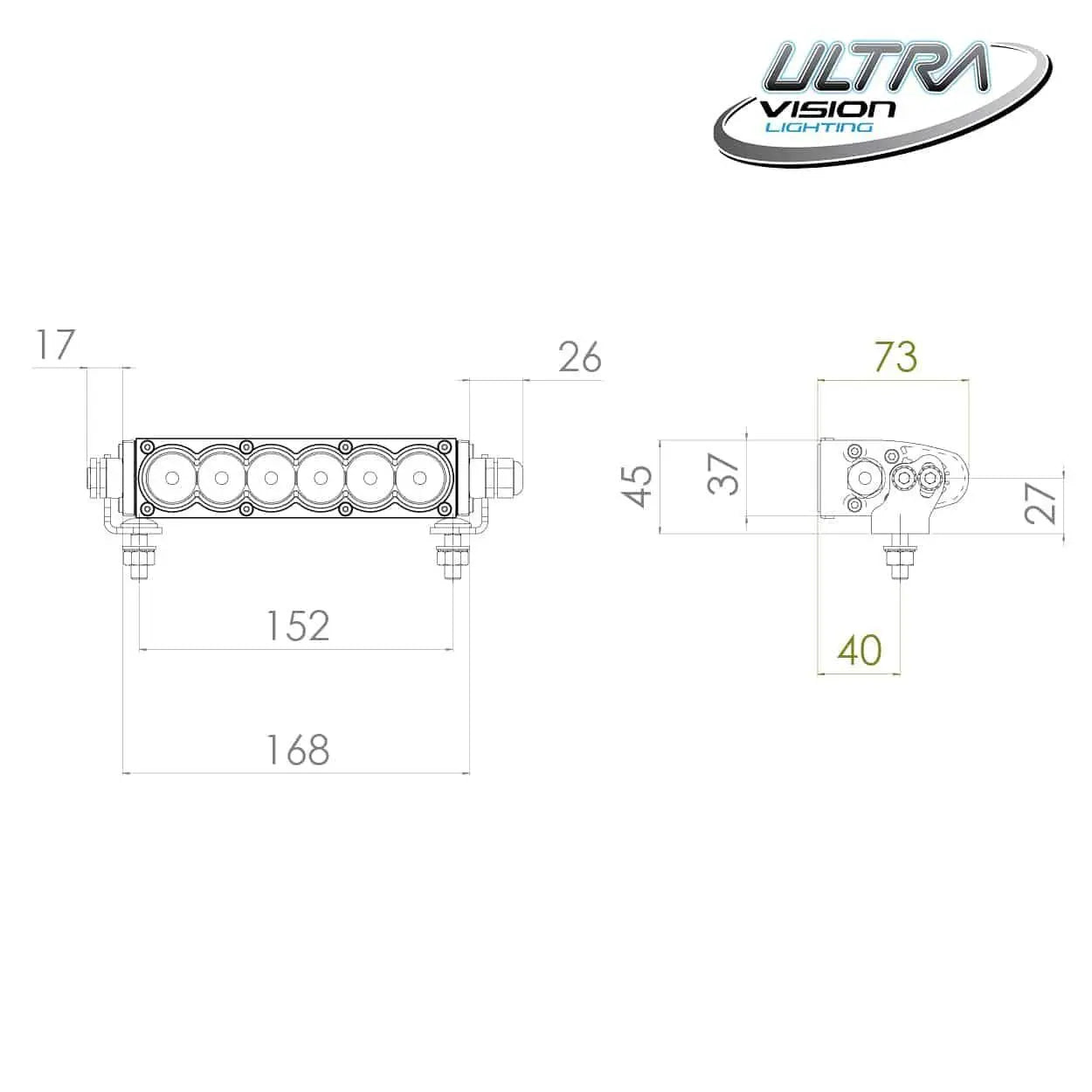

Dimensions 213 x 45 x 73mm
Net Weight 640g
Mounting Suitable Side Mount
Beam Type Spread or Combo
Warranty 3 Years
Harness Harness not included, purchased separately. Harness to suit: DV12H
