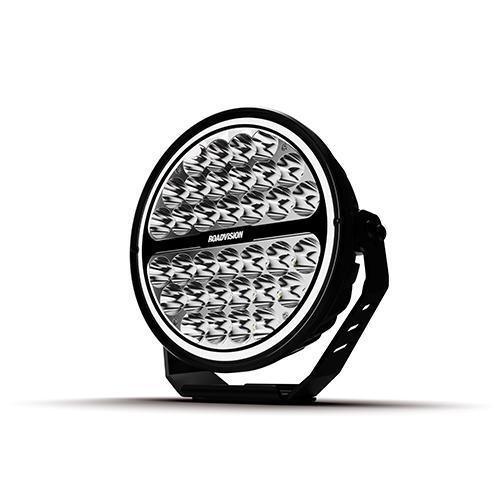

Roadvision 9" 143W Stealth Driving Light Kit

Roadvision 9" 143W Stealth Driving Light Kit

Regular price $780.00
Regular price $1,071.05 Sale price $780.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $195.00 AUD fortnightly with More info

Add Wiring Harness

9-32V / 34x3W / 142W / 10485lm TMT Spot Beam + Halo Ring S9

Roadvision's S9 Stealth Series Driving Lights deliver a sleek modern appearance perfect for larger 4WD's and Trucks. Featuring black mounting hardware,innovative HALO DRL, stylish modern bezel-less design and utilising 34 x 3W Osram LEDs. The S9 series punches out an impressive 10485lm per light and912mts of beam penetration @ 1 lux by utilising Roadvision's Thermal Management Technology. Built to withstand the harshest conditions the S9 series driving lights feature a tough yet lightweight aluminium housing and polycarbonate lens providing superior performance and durability.

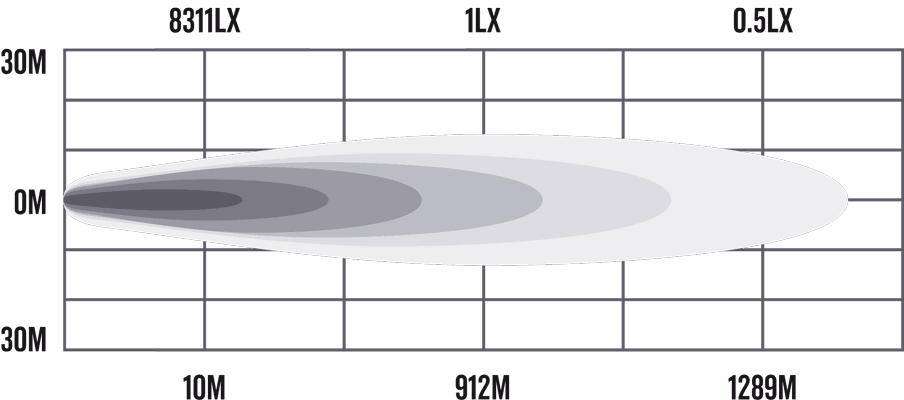

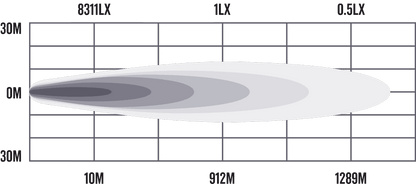

Beam Pattern Spot
Maximum Lumens per Light (pair) 10,485lm (20,970lm)
Maximum Lux @ 10m per Light (pair) 8,311lx (16,622lx)
Maximum Beam Distance @ 0.5lx per Light (pair) 1,289m (1,823m)
Maximum Beam Distance @ 1lx per Light (pair) 912m (1,289m)
Input Voltage 10-30VDC
Maximum Watts 143W
Number of LEDS 34 x 3W Osram
Current Draw @ 13.8V 5.56~10.34 Amps
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2 Pin Deutsch Plug

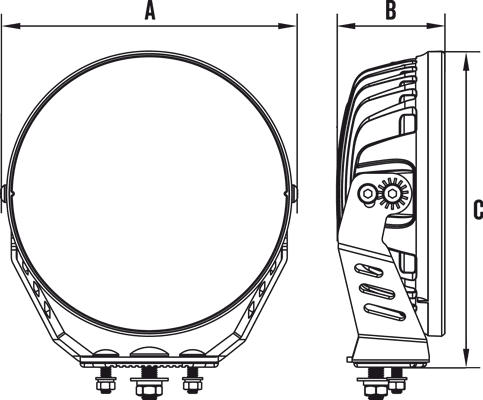

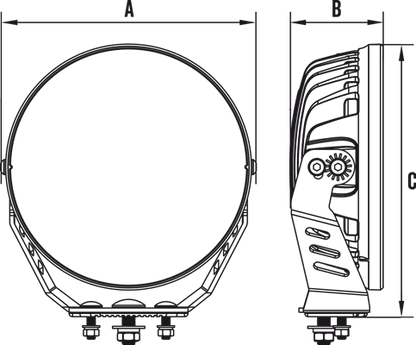

Dimensions AxBxC 238 x 87 x 249mm

Complete wiring harness kit suitable for pair driving lights
Suitable for 12V or 24V vehicles
Plug & play H4/HB3 piggy back connector
Waterproof Deutsch plugs
Supplied with 12V & 24V relays
Supplied with illuminated rocker switch
Works on both positive & negatively switched head lamp systems
Simple DIY fitment

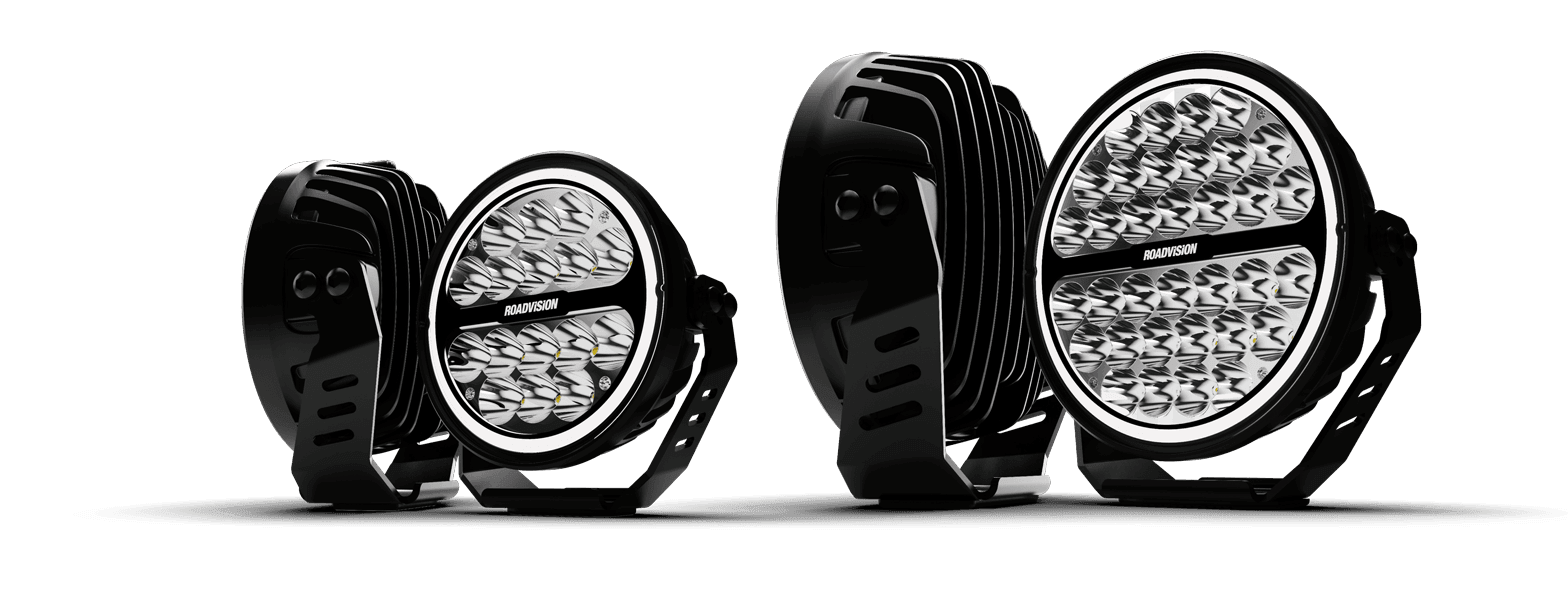

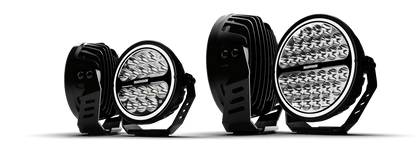

Stealth Halo Series 7″ and 9” Driving Light with Halo DRL
Blackout mounting hardware
3W Osram LED’s produce super white light close to daylight
Multi-volt 10-30V DC input & low current draw
50,000 hour LED lifespan with solid state technology
Thermal Management Technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP67 rated
Simple 2 wire installation
Over/under voltage, reverse polarity protection & EMI/EMC
Radio interference approved
