Ultra Vision Lighting

Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit

Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit

Regular price $1,185.00
Regular price Sale price $1,185.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $296.25 AUD fortnightly with More info

Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit

Boost your lighting set-up on your 300 Series Land Cruiser without investing in a bull bar.

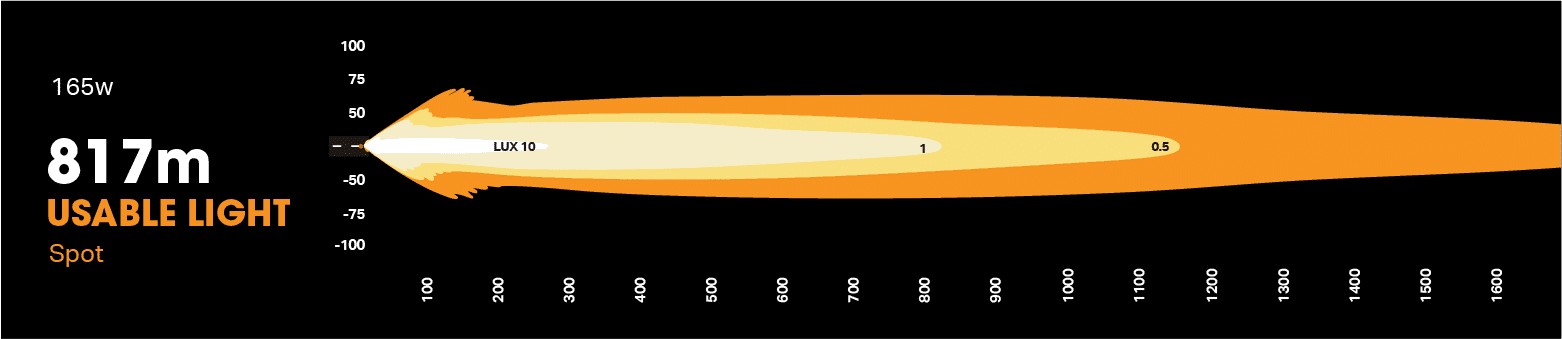

Our Behind Grille Light Bar kit is compatible with all 300 series models. The Raptor 165w light bar turns on with the vehicles’ high beam for the best visibility when the sun is down, with an extra 817m of usable lighting distance.

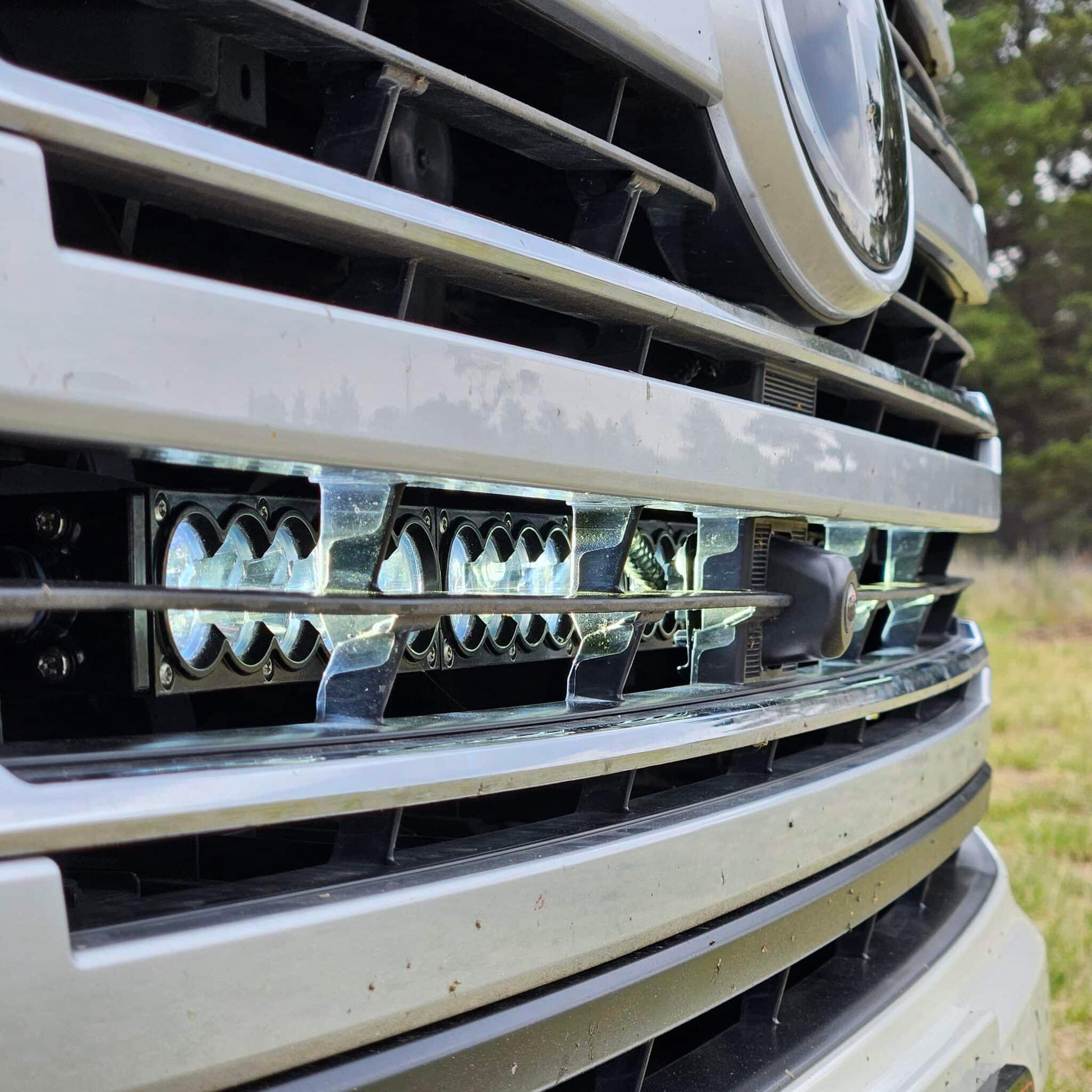

When installing, there is no need to cut or drill into your grille as the bracket system has been designed to mount to existing points behind the grille.

This kit is a great way to reduce impact on the features of the vehicle, as spotlights on a bull bar can affect the radar sensor behind the badge. With this light bar kit, there will be no interference on any safety features.

Features

  • Designed specifically for the Toyota 300 Series Land Cruiser
  • No bull bar required
  • No cutting or drilling required

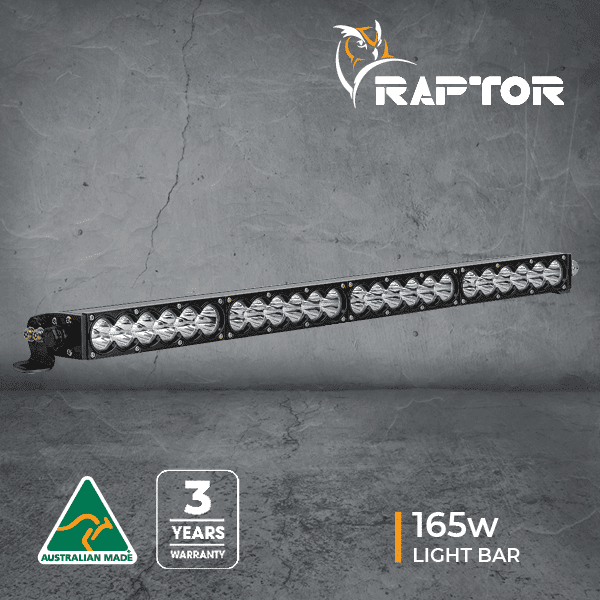

  • Includes 1 x Raptor 165w 26.5-Inch LED Light Bar with 817m beam distance at 1 Lux
  • Brackets powder-coated black for sleek design and rust preservation
  • Designed and made in Australia
Each kit comes complete with:
  • 2x Raptor 40w 8.5-Inch LED Light Bars
  • 1x Purpose-built Toyota 200 Series LC Light Bar black bracket kit
  • 1x 200 Series LC High-beam plug & play wiring adaptor
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions

Specifications

165W Raptor Light Bar Specifications
Wattage 165 Watts
Light Source 24 High Power LEDs
Light Output – Raw 18,609 Lumens
Light Output – Effective 15,240 Lumens
Voltage 9-36V
Current Draw 13A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel powdered-coated black
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 679 x 45 x 73mm
Net Weight 2.3kg
Mounting Suitable Side mount brackets
Beams Available Spot
Warranty 3 Years
