VW Amarok 2023-on Behind Grille Light Bar Kit – Style, PanAmericana & Aventura Models
No bull bar? No problem!

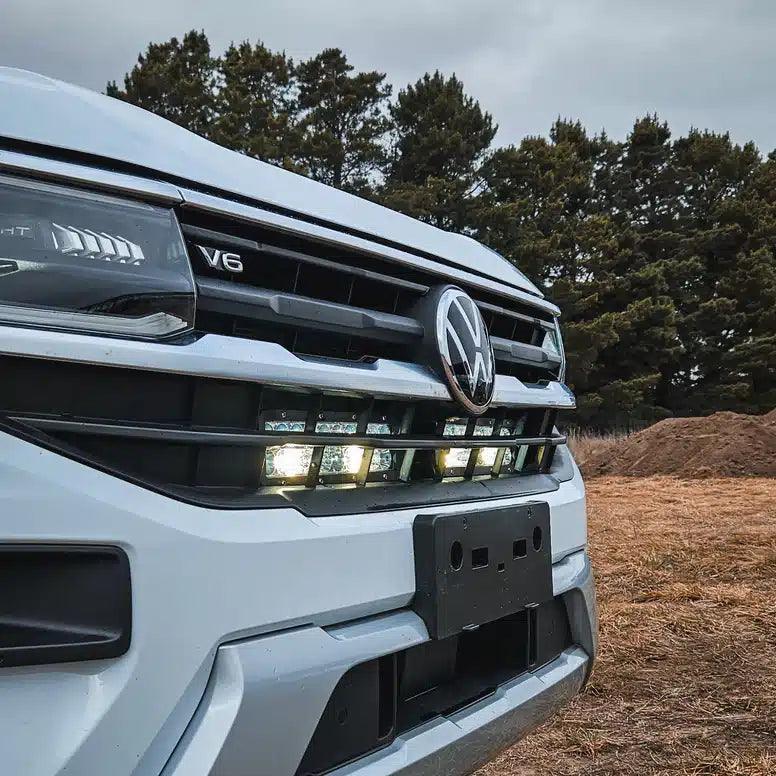

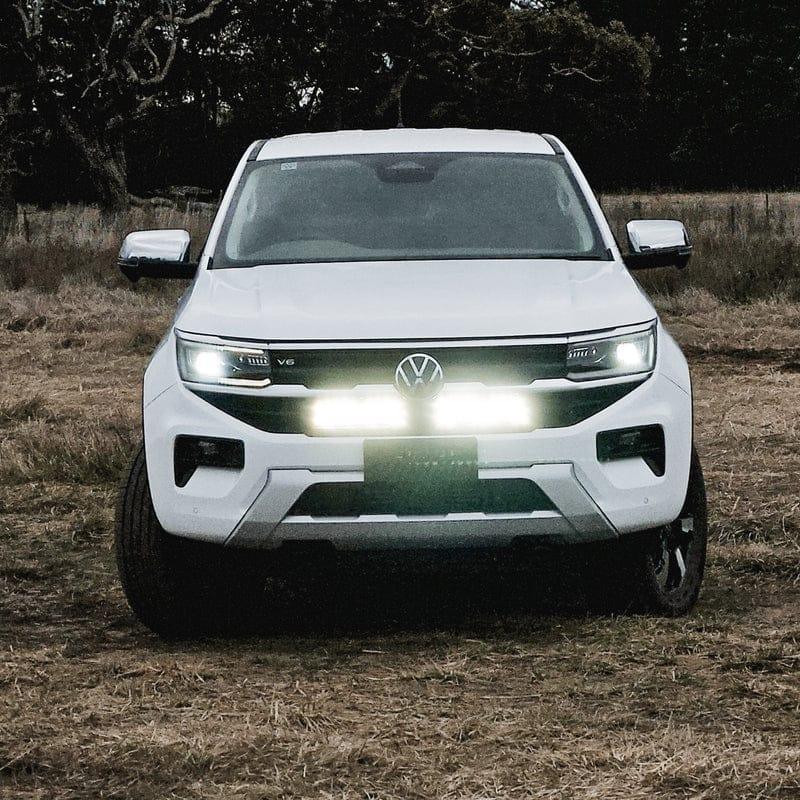

Light up the night with Ultra Vision and our specifically designed Behind Grille Light Bar Kit for Style, Pan Americana & Aventura models.
The purpose-built bracket system positions your choice of either one or two light bars behind the grille and mounts to the bumper framework. This results in a very solid fitment so there’s no shaking when you’re out driving on rough roads.
When installing, only the grille shroud beneath the bonnet needs to be removed for temporary access.
Features

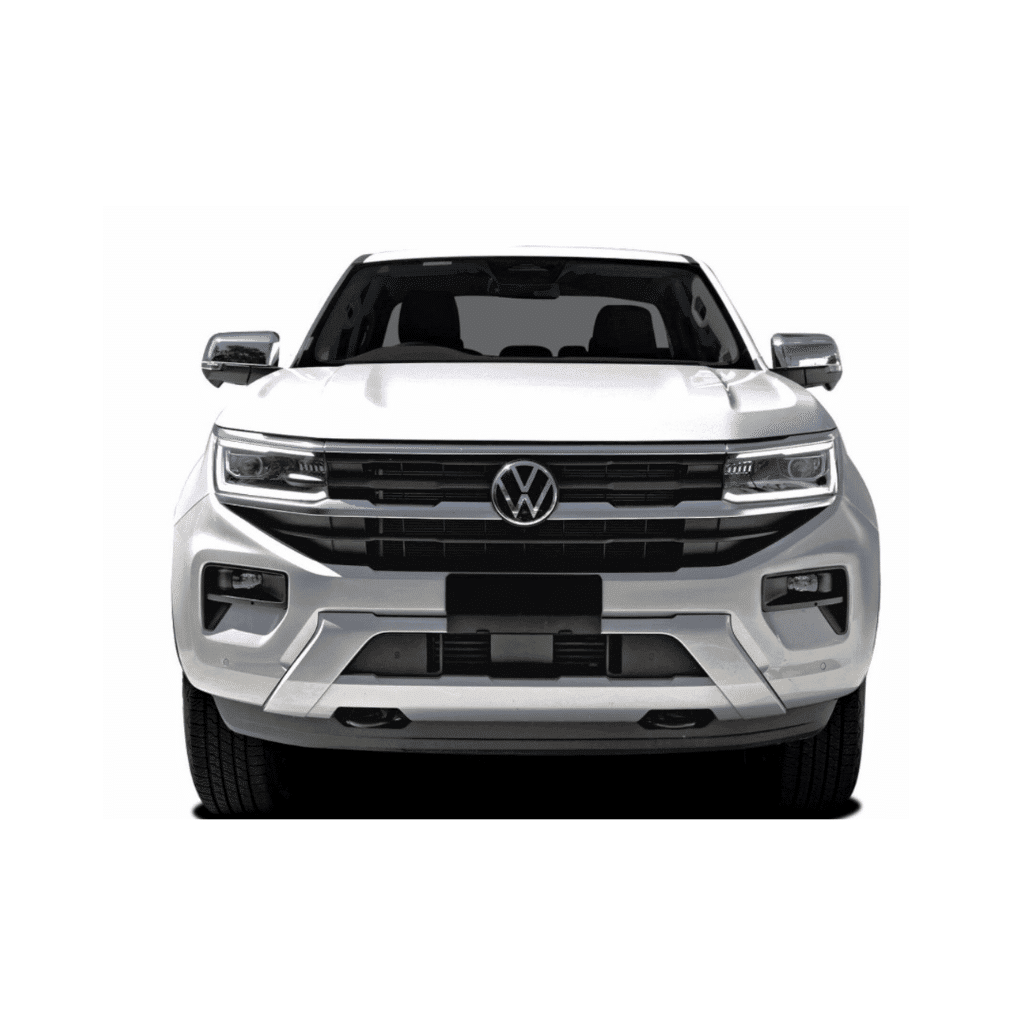

- Designed specifically for VW Amarok NF 2023-on Style, PanAmericana & Aventura Models
- No bull bar required
- No cutting or drilling required
- Choose from Raptor or Nitro Maxx Light Bar options
- Brackets powder-coated black for sleek design and rust preservation
- Designed and made in Australia
Choose from Light Bar Options Below (all 5700K colour temperature):

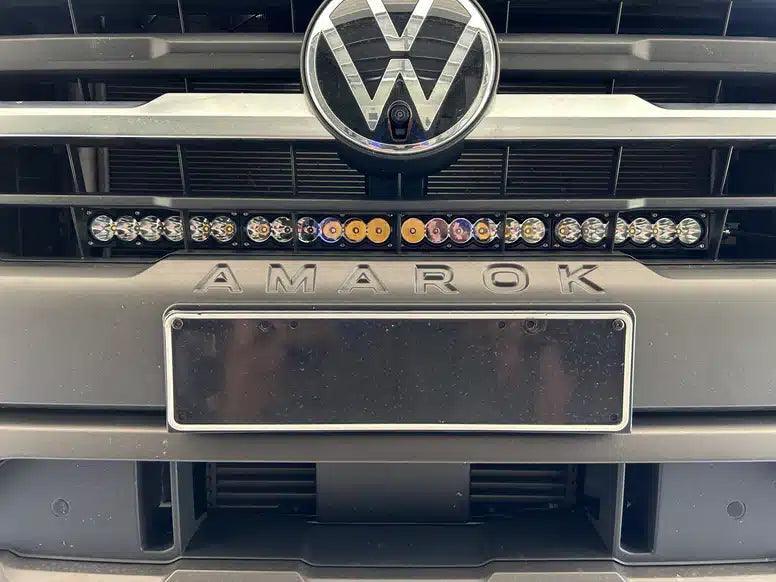

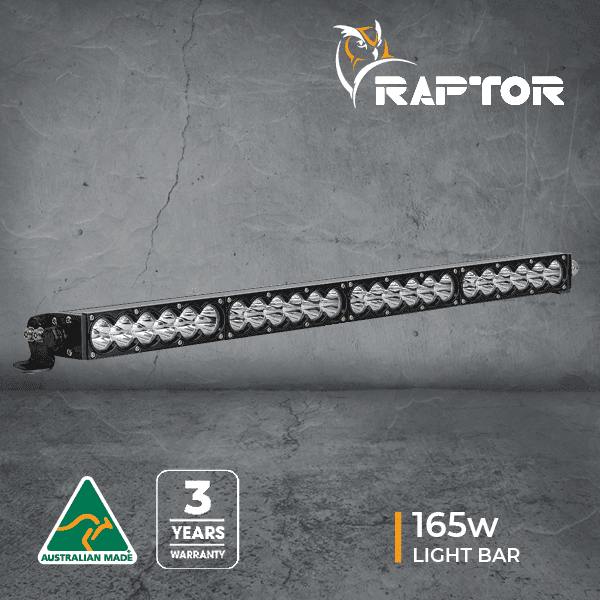

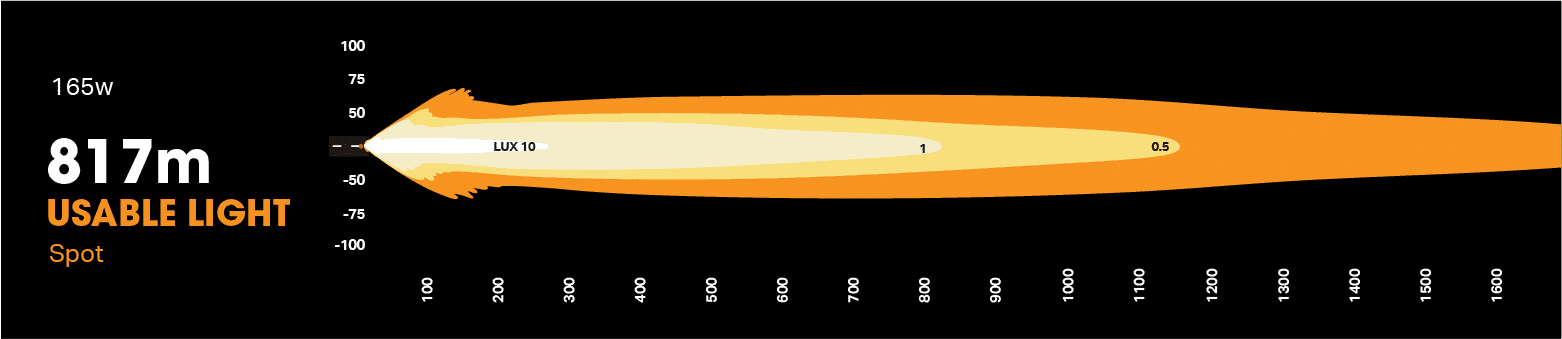

- 1 x Raptor 165w 26.5-Inch LED Light Bar

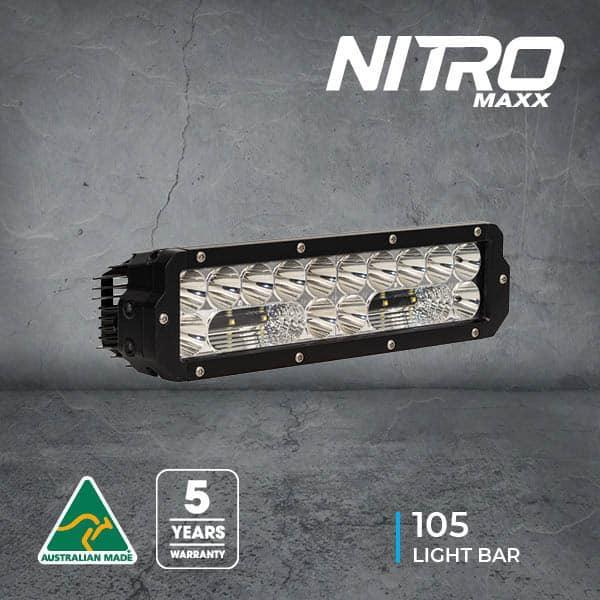

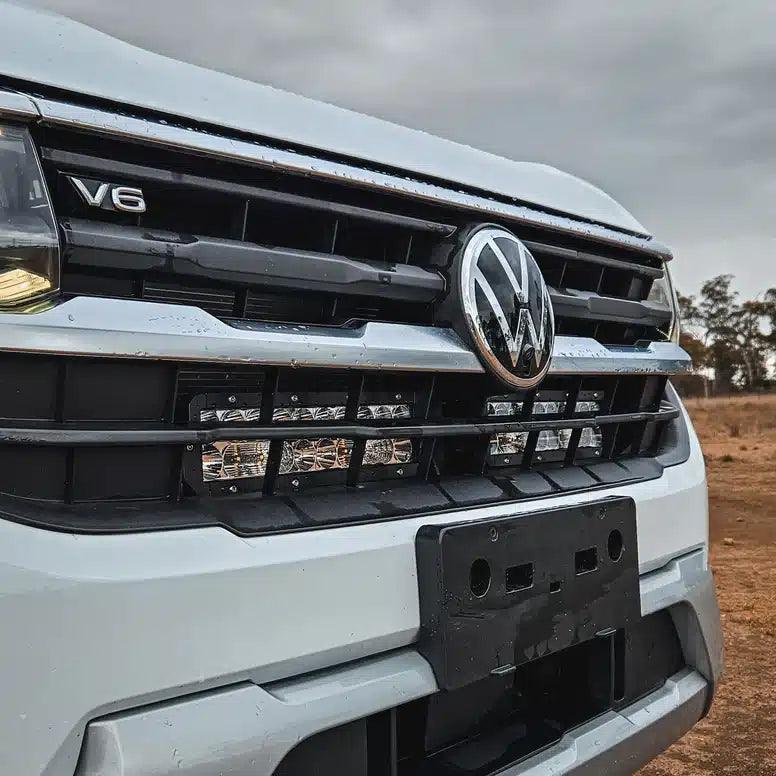

- 2 x Nitro Maxx 105w 13-Inch LED Light Bars
Each kit comes complete with:
- 1x Raptor or 2x Nitro Maxx or Light Bar/s of your choice.
- 1x Wiring harness to suit
- 1x Purpose-built VW Amarok behind-grille black powder-coated bracket kit
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Specifications
Light Bar Specs (1x Light Bar) | Raptor 165w | Nitro Maxx 105 |
---|---|---|
Wattage | 165 Watts | 100 Watts |
Light Source | 24 High Power LEDs | 20 x 5w LED's |
Light Output – Raw | 18,609 Lumens | 12,320 Lumens |
Light Output – Effective | 15,240 Lumens | 8,865 Lumens |
Voltage | 9-36V | 9-36V |
Current Draw | 13A | 8A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP67 | IP68 |
Connector Type Plugs | 2 Pin heavy duty Deutsch | 2 Pin heavy std Deutsch |
Housing | Aluminium | 6063 T5 Aluminium |
Lens Construction | Polycarbonate | Polycarbonate |
Brackets | Side Mount Brackets | Sliding Base / Side Mounts |
Colour Temperature | 5700K | 5700K |
Lifespan | 50,000 Hours | 50,000 Hours |
Dimensions | 679 x 45 x 73mm | 324 x 92 x 84mm |
Net Weight | 2.3 kg | 1.9kg |

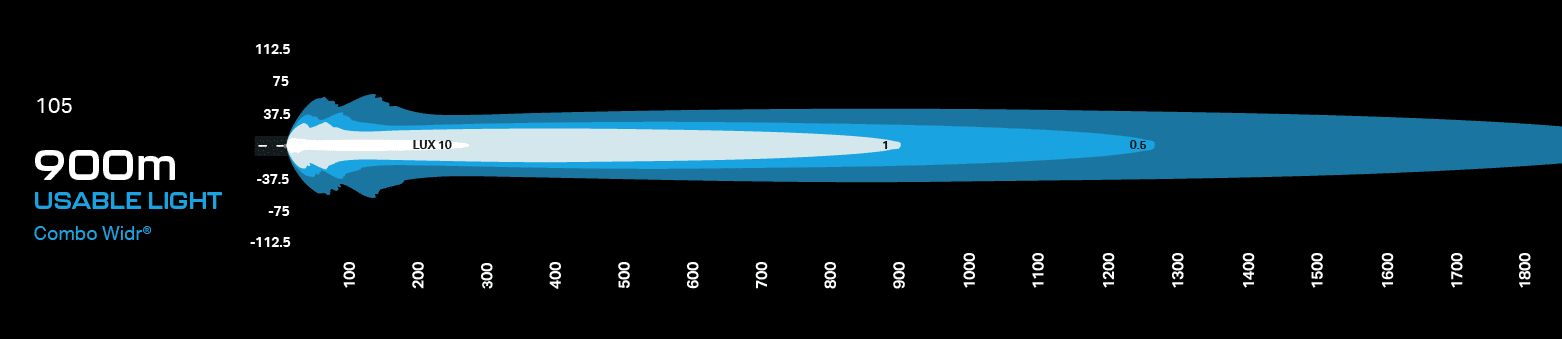

Beams Available | Spot | Combo and Widr |
Warranty | 3 Years | 5 Years |
